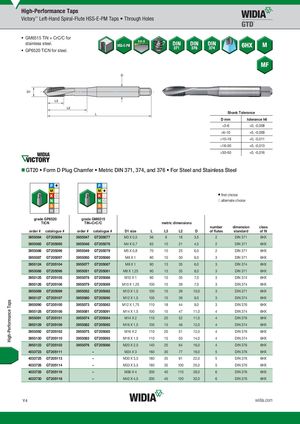

Shank Tolerance D mm tolerance h6 >3–6 +0, -0,008 >6–10 +0, -0,009 >10–18 +0, -0,011 >18–30 +0, -0,013 >30–50 +0, -0,016
GT20 Form D Plug Chamfer Metric DIN 371, 374, and 376 For Steel and Stainless Steel
first choice alternate choice
grade GP6520GP6520 grade GM6515GM6515
TiCN TiN+CrC/C metric dimensions
number dimension class
| order # catalogue # | order # catalogue # | D1 size | L | L3 | L2 | D | of flutes | standard | of fit | |
| 3955084 GT205094 | 3955047 GT205077 | M3 X 0,5 | 56 | 8 | 18 | 3,5 | 2 | DIN 371 | 6HX | |
| 3955085 GT205095 | 3955048 GT205078 | M4 X 0,7 | 63 | 10 | 21 | 4,5 | 2 | DIN 371 | 6HX | |
| 3955086 GT205096 | 3955049 GT205079 | M5 X 0,8 | 70 | 10 | 25 | 6,0 | 2 | DIN 371 | 6HX | |
| 3955087 GT205097 | 3955050 GT205080 | M6 X 1 | 80 | 10 | 30 | 6,0 | 3 | DIN 371 | 6HX | |
| 3955124 GT205104 | 3955077 GT205087 | M8 X 1 | 90 | 13 | 35 | 6,0 | 3 | DIN 374 | 6HX | |
| 3955088 GT205098 | 3955051 GT205081 | M8 X 1,25 | 90 | 13 | 35 | 8,0 | 3 | DIN 371 | 6HX | |
| 3955125 GT205105 | 3955078 GT205088 | M10 X 1 | 90 | 10 | 35 | 7,0 | 3 | DIN 374 | 6HX | |
| 3955126 GT205106 | 3955079 GT205089 | M10 X 1,25 | 100 | 15 | 39 | 7,0 | 3 | DIN 374 | 6HX | |
| 3955089 GT205099 | 3955052 GT205082 | M10 X 1,5 | 100 | 15 | 39 | 10,0 | 3 | DIN 371 | 6HX | |
| 3955127 GT205107 | 3955080 GT205090 | M12 X 1,5 | 100 | 15 | 39 | 9,0 | 3 | DIN 374 | 6HX | |
| 3955090 GT205100 | 3955073 GT205083 | M12 X 1,75 | 110 | 18 | 44 | 9,0 | 3 | DIN 376 | 6HX | |
| 3955128 GT205108 | 3955081 GT205091 | M14 X 1,5 | 100 | 15 | 47 | 11,0 | 4 | DIN 374 | 6HX | |
| 3955091 GT205101 | 3955074 GT205084 | M14 X 2 | 110 | 20 | 52 | 11,0 | 4 | DIN 376 | 6HX | |
| 3955129 GT205109 | 3955082 GT205092 | M16 X 1,5 | 100 | 15 | 46 | 12,0 | 4 | DIN 374 | 6HX | |
| 3955092 GT205102 | 3955075 GT205085 | M16 X 2 | 110 | 20 | 51 | 12,0 | 4 | DIN 376 | 6HX | |
| 3955130 GT205110 | 3955083 GT205093 | M18 X 1,5 | 110 | 15 | 50 | 14,0 | 4 | DIN 374 | 6HX | |
| 3955123 GT205103 | 3955076 GT205086 | M20 X 2,5 | 140 | 25 | 64 | 16,0 | 4 | DIN 376 | 6HX | |
| 4033723 GT205111 | – | M24 X 3 | 160 | 30 | 77 | 18,0 | 5 | DIN 376 | 6HX | |
| 4033725 GT205113 | – | M30 X 3,5 | 180 | 35 | 91 | 22,0 | 5 | DIN 376 | 6HX | |
| 4033726 GT205114 | – | M33 X 3,5 | 180 | 35 | 100 | 25,0 | 5 | DIN 376 | 6HX | |
| 4033728 GT205116 | – | M36 X 4 | 200 | 40 | 110 | 28,0 | 6 | DIN 376 | 6HX | |
| 4033730 GT205118 | – | M42 X 4,5 | 200 | 45 | 120 | 32,0 | 6 | DIN 376 | 6HX |
