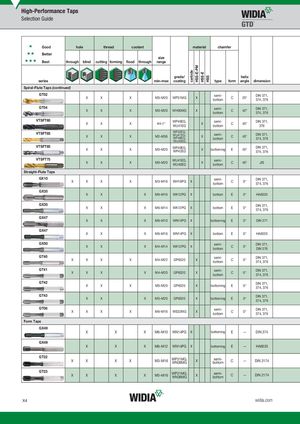

| � Good | ho | le | thr | ead | coo | lant | materia | l | cham | fer | ||||
| �� Better ��� Best | through | blind | cutting | forming | flood | through | size range | |||||||
| series | min–max | grade/ coating | carbide HSS-E-PM HSS-E | HSS | type | form | helix angle | dimension | ||||||
| Spiral-Flute Taps(contin | ued) | |||||||||||||
| GT02 | X | X | X | M3–M20 | WP31MG | X | semi- bottom | C | 25° | DIN 371, 374, 376 | ||||
| GT04 | X | X | X | M3–M20 | WH36MG | X | semi- bottom | C | 42° | DIN 371, 374, 376 | ||||
| VTSFT60 | X | X | X | #4–1" | WP49EG, WU41EG | X | semi- bottom | C | 45° | DIN 371, 376 | ||||
| VTSFT65 | X | X | X | M2–M36 | WP42EG, WU41EG, WP49EG, WU40EG | X | semi- bottom | C | 45° | DIN 371, 374, 376 | ||||
| VTSFT65 | X | X | X | M3–M20 | WP49EG, WP42EG | X | b | ottoming | E | 45° | DIN 371, 374, 376 | |||
| VTSFT75 | X | X | X | M3–M20 | WU41EG, WU40EG | X | semi- bottom | C | 45° | JIS | ||||
| Straight-Flute Taps | ||||||||||||||
| GX10 | X | X | X | X | M3–M16 | WH16PG | X | semi- bottom | C | 0° | DIN 371, 374, 376 | |||
| GX35 | X | X | X | M6–M16 | WK12PG | X | bottom | E | 0° | HA6535 | ||||
| GX35 | X | X | X | M6–M14 | WK12PG | X | bottom | E | 0° | DIN 371, 374, 376 | ||||
| GX47 | X | X | X | M6–M10 | WN14PG | X | b | ottoming | E | 0° | DIN 371 | |||
| GX47 | X | X | X | M6–M16 | WN14PG | X | bottom | E | 0° | HA6535 | ||||
| GX50 | X | X | X | M4–M14 | WK12PG | X | semi- bottom | C | 0° | DIN 371, DIN 376 | ||||
| GT40 | X | X | X | X | M4–M22 | GP6520 | X | semi- bottom | C | 0° | DIN 371, 374, 376 | |||
| GT41 | X | X | X | X | M4–M20 | GP6520 | X | semi- bottom | C | 0° | DIN 371, 374, 376 | |||
| GT42 | X | X | X | M5–M20 | GP6520 | X | b | ottoming | E | 0° | DIN 371, 374, 376 | |||
| GT43 | X | X | X | M5–M20 | GP6520 | X | b | ottoming | E | 0° | DIN 371, 374, 376 | |||
| GT06 | X | X | X | X | M6–M16 | WS32MG | X | semi- bottom | C | 0° | DIN 371, 374, 376 | |||
| Form Taps | ||||||||||||||
| GX49 | X | X | X | M6–M10 | WN14PG | X | b | ottoming | E | — | DIN 374 | |||
| GX49 | X | X | X | M6–M12 | WN14PG | X | b | ottoming | E | — | HA6535 | |||
| GT22 | X | X | X | X | M3–M16 | WP31MG, WN38MG | X | semi- bottom | C | — | DIN 2174 | |||
| GT23 | X | X | X | X | M5–M16 | WP31MG, WN38MG | X | semi- bottom | C | — | DIN 2174 |
