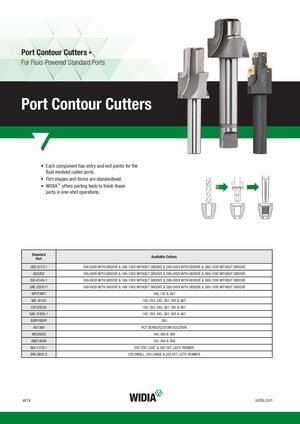

Port Contour Cutters
For Fluid-Powered Standard Ports
Port Contour Cutters
- Each component has entry and exit points for the fl uid involved called ports.
- Port shapes and forms are standardised.
- WIDIA™ offers porting tools to fi nish these ports in one-shot operations.
Standard Available Cutters Port
| Standard Port | Available Cutters |
| JDS-G173.1 | 169-0XXX WITH GROOVE & 169-1XXX WITHOUT GROOVE & 269-0XXX WITH GROOVE & 269-1XXX WITHOUT GROOVE |
| AS5202 | 169-0XXX WITH GROOVE & 169-1XXX WITHOUT GROOVE & 269-0XXX WITH GROOVE & 269-1XXX WITHOUT GROOVE |
| ISO-6149-1 | 169-0XXX WITH GROOVE & 169-1XXX WITHOUT GROOVE & 269-0XXX WITH GROOVE & 269-1XXX WITHOUT GROOVE |
| SAE J2241/1 | 169-0XXX WITH GROOVE & 169-1XXX WITHOUT GROOVE & 269-0XXX WITH GROOVE & 269-1XXX WITHOUT GROOVE |
| NPTF/NPT | 186, 187 & 287 |
| MS 16142 | 163, 253, 263, 267, 367 & 467 |
| CAT.IE2554 | 163, 253, 263, 267, 367 & 467 |
| SAE J1926-1 | 163, 253, 263, 267, 367 & 467 |
| BSPP/BSPF | 265 |
| AS1300 | RCT SERIES/CUSTOM SOLUTION |
| MS33659 | 164, 264 & 268 |
| AND10050 | 164, 264 & 268 |
| ISO-1179-1 | 255 STD. LGHT. & 265 EXT. LGTH. REAMER |
| DIN-3852-2 | 225 SMALL, 235 LARGE & 245 EXT. LGTH. REAMER |
