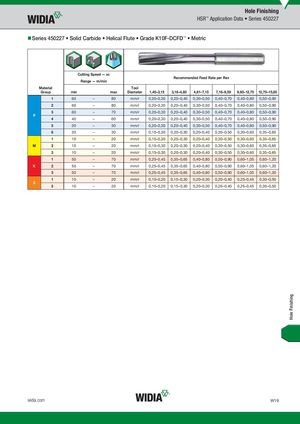

Series 450227 • Solid Carbide • Helical Flute • Grade K10F-DCFD™ • Metric
| Cutting Speed Range — m/ | — vc min | Recomme | nded Feed Ra | te per Rev | ||||||
| Materi Grou | al p | min | max | Tool Diameter | 1,40–3,15 | 3,16–4,80 | 4,81–7,15 | 7,16–9,59 | 9,60–12,70 | 12,70–15,00 |
| 1 | 60 – | 80 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,40–0,70 | 0,40–0,80 | 0,50–0,90 | |
| 2 | 60 – | 80 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,40–0,70 | 0,40–0,80 | 0,50–0,90 | |
| P | 3 | 60 – | 70 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,40–0,70 | 0,40–0,80 | 0,50–0,90 |
| 4 | 40 – | 60 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,40–0,70 | 0,40–0,80 | 0,50–0,90 | |
| 5 | 20 – | 30 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,40–0,70 | 0,40–0,80 | 0,50–0,90 | |
| 6 | 20 – | 30 | mm/r | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 | |
| 1 | 10 – | 20 | mm/r | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 | |
| M | 2 | 10 – | 20 | mm/r | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 3 | 10 – | 20 | mm/r | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 | |
| 1 | 50 – | 70 | mm/r | 0,25–0,45 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 | |
| K | 2 | 50 – | 70 | mm/r | 0,25–0,45 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 3 | 50 – | 70 | mm/r | 0,25–0,45 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 | |
| S | 1 | 10 – | 20 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 | 0,30–0,50 |
| 2 | 10 – | 20 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 | 0,30–0,50 |
