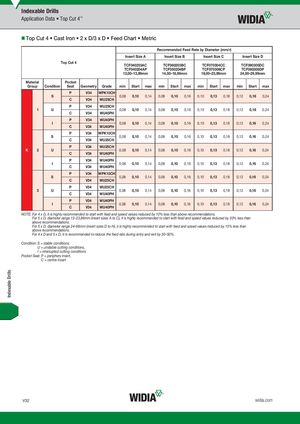

Общий каталог Widia 2017 - страница 1600
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| Recom | mended | Feed R | ate by D | iameter | (mm/r) | ||||||||||
| Ins | ert Size | A | In | sert Size | B | Ins | ert Size | C | In | sert Size | D | ||||
| T | op Cut 4 | TC TC 12,0 | F040203 F040204 0–13,99 | AC AP mm | TC TC 14,0 | F060203 F050204 0–18,99 | BC BP mm | TC TC 19,0 | F070304 F070306 0–23,99 | CC CP mm | TC TC 24, | F090305 F080308 00–29,99 | DC DP mm | ||
| Material | |||||||||||||||
| Group Condition | Seat | Geometry | Grade | min | Start | max | min | Start | max | min | Start | max | min | Start | max |
| S | P C | V34 V34 | WPK10CH WU25CH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
| 1 U | P C | V34 V34 | WU25CH WU40PH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
| I | P C | V34 V34 | WU40PH WU40PH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
| S | P C | V34 V34 | WPK10CH WU25CH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
| K 2 U | P C | V34 V34 | WU25CH WU40PH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
| I | P C | V34 V34 | WU40PH WU40PH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
| S | P C | V34 V34 | WPK10CH WU25CH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
| 3 U | P C | V34 V34 | WU25CH WU40PH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
| I | P C | V34 V34 | WU40PH WU40PH | 0,08 | 0,10 | 0,14 | 0,08 | 0,10 | 0,16 | 0,10 | 0,13 | 0,18 | 0,12 | 0,16 | 0,24 |
For 5 x D, diameter range 12–23,99mm (insert sizes A to C), it is highly recommended to start with feed and speed values reduced by 20% less than above recommendations. For 5 x D, diameter range 24–68mm (insert sizes D to H), it is highly recommended to start with feed and speed values reduced by 15% less than above recommendations. For 4 x D and 5 x D, it is recommended to reduce the feed rate during entry and exit by 30–50%. Condition: S = stable conditions, U = unstable cutting conditions, I = interrupted cutting conditions Pocket Seat: P = periphery insert, C = centre insert
