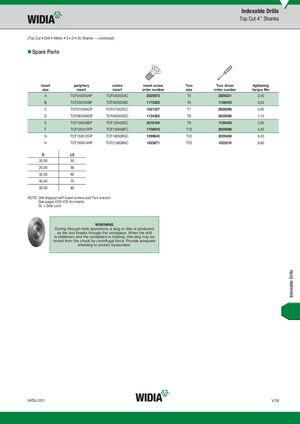

(Top Cut 4 Drill • Metric • 5 x D • SL Shanks — continued)
Spare Parts
| insert size | periphery insert | centre insert | insert screw order number | Torx size | Torx driver order number | tightening torque Nm |
| A | TCF040204AP | TCF040203AC | 2025073 | T5 | 2029221 | 0,40 |
| B | TCF050204BP | TCF060203BC | 1175225 | T6 | 1138455 | 0,53 |
| C | TCF070306CP | TCF070304CC | 1021337 | T7 | 2029266 | 0,90 |
| D | TCF080308DP | TCF090305DC | 1134385 | T8 | 2029598 | 1,10 |
| E | TCF100408EP | TCF120405EC | 2018194 | T9 | 1138430 | 2,00 |
| F | TCF120412FP | TCF150406FC | 1756815 | T15 | 2029596 | 4,00 |
| G | TCF150512GP | TCF180508GC | 1099645 | T20 | 2029488 | 6,30 |
| H | TCF180614HP | TCF210608HC | 1823871 | T25 | 1022519 | 8,80 |
| D | LS | |||||
| 20,00 | 50 | |||||
| 25,00 | 56 | |||||
| 32,00 | 60 | |||||
| 40,00 | 70 | |||||
| 50,00 | 80 |
NOTE: Drill shipped with insert screws and Torx wrench. See pages V20–V23 for inserts. SL = Side Lock
WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders.
