For information on LS, see the table on page V19.

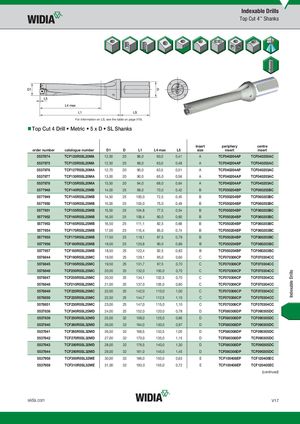

Top Cut 4 Drill • Metric • 5 x D • SL Shanks
| order number | catalogue number | D1 | D | L1 | L4 max | L5 | insert size | periphery insert | centre insert |
| 5537874 | TCF120R5SL20MA | 12,00 | 20 | 86,0 | 60,0 | 0,41 | A | TCF040204AP | TCF040203AC |
| 5537875 | TCF125R5SL20MA | 12,50 | 20 | 89,0 | 63,0 | 0,48 | A | TCF040204AP | TCF040203AC |
| 5537876 | TCF127R5SL20MA | 12,70 | 20 | 90,0 | 63,5 | 0,51 | A | TCF040204AP | TCF040203AC |
| 5537877 | TCF130R5SL20MA | 13,00 | 20 | 90,0 | 65,0 | 0,56 | A | TCF040204AP | TCF040203AC |
| 5537878 | TCF135R5SL20MA | 13,50 | 20 | 94,0 | 68,0 | 0,64 | A | TCF040204AP | TCF040203AC |
| 5577948 | TCF140R5SL25MB | 14,00 | 25 | 99,0 | 70,0 | 0,42 | B | TCF050204BP | TCF060203BC |
| 5577949 | TCF145R5SL25MB | 14,50 | 25 | 100,0 | 72,5 | 0,45 | B | TCF050204BP | TCF060203BC |
| 5577950 | TCF150R5SL25MB | 15,00 | 25 | 103,0 | 75,0 | 0,49 | B | TCF050204BP | TCF060203BC |
| 5577951 | TCF155R5SL25MB | 15,50 | 25 | 104,8 | 77,5 | 0,54 | B | TCF050204BP | TCF060203BC |
| 5577952 | TCF160R5SL25MB | 16,00 | 25 | 108,4 | 80,0 | 0,60 | B | TCF050204BP | TCF060203BC |
| 5577953 | TCF165R5SL25MB | 16,50 | 25 | 111,1 | 82,5 | 0,68 | B | TCF050204BP | TCF060203BC |
| 5577954 | TCF170R5SL25MB | 17,00 | 25 | 115,4 | 85,0 | 0,74 | B | TCF050204BP | TCF060203BC |
| 5577955 | TCF175R5SL25MB | 17,50 | 25 | 118,1 | 87,5 | 0,79 | B | TCF050204BP | TCF060203BC |
| 5577956 | TCF180R5SL25MB | 18,00 | 25 | 120,8 | 90,0 | 0,86 | B | TCF050204BP | TCF060203BC |
| 5577957 | TCF185R5SL25MB | 18,50 | 25 | 122,4 | 92,5 | 0,83 | B | TCF050204BP | TCF060203BC |
| 5578844 | TCF190R5SL25MC | 19,00 | 25 | 129,1 | 95,0 | 0,60 | C | TCF070306CP | TCF070304CC |
| 5578845 | TCF195R5SL25MC | 19,50 | 25 | 131,7 | 97,5 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578846 | TCF200R5SL25MC | 20,00 | 25 | 132,0 | 100,0 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578847 | TCF205R5SL25MC | 20,50 | 25 | 134,1 | 102,5 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578848 | TCF210R5SL25MC | 21,00 | 25 | 137,0 | 105,0 | 0,80 | C | TCF070306CP | TCF070304CC |
| 5578849 | TCF220R5SL25MC | 22,00 | 25 | 142,0 | 110,0 | 1,00 | C | TCF070306CP | TCF070304CC |
| 5578850 | TCF225R5SL25MC | 22,50 | 25 | 144,7 | 112,5 | 1,10 | C | TCF070306CP | TCF070304CC |
| 5578851 | TCF230R5SL25MC | 23,00 | 25 | 147,0 | 115,0 | 1,10 | C | TCF070306CP | TCF070304CC |
| 5537838 | TCF240R5SL25MD | 24,00 | 25 | 152,0 | 120,0 | 0,78 | D | TCF080308DP | TCF090305DC |
| 5537839 | TCF250R5SL32MD | 25,00 | 32 | 158,0 | 125,0 | 0,86 | D | TCF080308DP | TCF090305DC |
| 5537840 | TCF260R5SL32MD | 26,00 | 32 | 164,0 | 130,0 | 0,97 | D | TCF080308DP | TCF090305DC |
| 5537841 | TCF265R5SL32MD | 26,50 | 32 | 166,5 | 132,5 | 1,05 | D | TCF080308DP | TCF090305DC |
| 5537842 | TCF270R5SL32MD | 27,00 | 32 | 170,0 | 135,0 | 1,15 | D | TCF080308DP | TCF090305DC |
| 5537843 | TCF280R5SL32MD | 28,00 | 32 | 176,5 | 140,0 | 1,30 | D | TCF080308DP | TCF090305DC |
| 5537844 | TCF290R5SL32MD | 29,00 | 32 | 181,0 | 145,0 | 1,45 | D | TCF080308DP | TCF090305DC |
| 5537958 | TCF300R5SL32ME | 30,00 | 32 | 186,0 | 150,0 | 0,63 | E | TCF100408EP | TCF120405EC |
| 5537959 | TCF310R5SL32ME | 31,00 | 32 | 193,0 | 155,0 | 0,72 | E | TCF100408EP | TCF120405EC |
