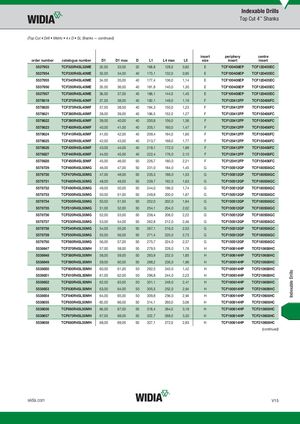

(Top Cut 4 Drill • Metric • 4 x D • SL Shanks — continued)
insert periphery centre
| order number | catalogue number | D1 | D1 max | D | L1 | L4 max | L5 | size | insert insert | |
| 5537953 | TCF320R4SL32ME | 32,00 | 33,00 | 32 | 168,8 | 128,0 | 0,82 | E | TCF100408EP | TCF120405EC |
| 5537954 | TCF330R4SL40ME | 33,00 | 34,00 | 40 | 173,1 | 132,0 | 0,95 | E | TCF100408EP | TCF120405EC |
| 5537955 | TCF340R4SL40ME | 34,00 | 35,00 | 40 | 177,4 | 136,0 | 1,14 | E | TCF100408EP | TCF120405EC |
| 5537956 | TCF350R4SL40ME | 35,00 | 36,00 | 40 | 181,8 | 140,0 | 1,30 | E | TCF100408EP | TCF120405EC |
| 5537957 | TCF360R4SL40ME | 36,00 | 37,00 | 40 | 186,1 | 144,0 | 1,45 | E | TCF100408EP | TCF120405EC |
| 5578619 | TCF370R4SL40MF | 37,00 | 38,00 | 40 | 192,1 | 148,0 | 1,19 | F | TCF120412FP | TCF150406FC |
| 5578620 | TCF375R4SL40MF | 37,50 | 38,50 | 40 | 194,3 | 150,0 | 1,23 | F | TCF120412FP | TCF150406FC |
| 5578621 | TCF380R4SL40MF | 38,00 | 39,00 | 40 | 196,5 | 152,0 | 1,27 | F | TCF120412FP | TCF150406FC |
| 5578622 | TCF390R4SL40MF | 39,00 | 40,00 | 40 | 200,8 | 156,0 | 1,36 | F | TCF120412FP | TCF150406FC |
| 5578623 | TCF400R4SL40MF | 40,00 | 41,00 | 40 | 205,1 | 160,0 | 1,47 | F | TCF120412FP | TCF150406FC |
| 5578624 | TCF410R4SL40MF | 41,00 | 42,00 | 40 | 209,4 | 164,0 | 1,60 | F | TCF120412FP | TCF150406FC |
| 5578625 | TCF420R4SL40MF | 42,00 | 43,00 | 40 | 213,7 | 168,0 | 1,77 | F | TCF120412FP | TCF150406FC |
| 5578626 | TCF430R4SL40MF | 43,00 | 44,00 | 40 | 218,1 | 172,0 | 1,99 | F | TCF120412FP | TCF150406FC |
| 5578627 | TCF440R4SL40MF | 44,00 | 45,00 | 40 | 222,4 | 176,0 | 2,10 | F | TCF120412FP | TCF150406FC |
| 5578628 | TCF450R4SL50MF | 45,00 | 46,00 | 50 | 226,7 | 180,0 | 2,21 | F | TCF120412FP | TCF150406FC |
| 5578729 | TCF460R4SL50MG | 46,00 | 47,00 | 50 | 231,0 | 184,0 | 1,45 | G | TCF150512GP | TCF180508GC |
| 5578730 | TCF470R4SL50MG | 47,00 | 48,00 | 50 | 235,3 | 188,0 | 1,53 | G | TCF150512GP | TCF180508GC |
| 5578731 | TCF480R4SL50MG | 48,00 | 49,00 | 50 | 239,7 | 192,0 | 1,63 | G | TCF150512GP | TCF180508GC |
| 5578732 | TCF490R4SL50MG | 49,00 | 50,00 | 50 | 244,0 | 196,0 | 1,74 | G | TCF150512GP | TCF180508GC |
| 5578733 | TCF500R4SL50MG | 50,00 | 51,00 | 50 | 249,8 | 200,0 | 1,87 | G | TCF150512GP | TCF180508GC |
| 5578734 | TCF505R4SL50MG | 50,50 | 51,50 | 50 | 252,0 | 202,0 | 1,94 | G | TCF150512GP | TCF180508GC |
| 5578735 | TCF510R4SL50MG | 51,00 | 52,00 | 50 | 254,1 | 204,0 | 2,02 | G | TCF150512GP | TCF180508GC |
| 5578736 | TCF520R4SL50MG | 52,00 | 53,00 | 50 | 258,4 | 208,0 | 2,22 | G | TCF150512GP | TCF180508GC |
| 5578737 | TCF530R4SL50MG | 53,00 | 54,00 | 50 | 262,8 | 212,0 | 2,46 | G | TCF150512GP | TCF180508GC |
| 5578738 | TCF540R4SL50MG | 54,00 | 55,00 | 50 | 267,1 | 216,0 | 2,53 | G | TCF150512GP | TCF180508GC |
| 5578739 | TCF550R4SL50MG | 55,00 | 56,00 | 50 | 271,4 | 220,0 | 2,73 | G | TCF150512GP | TCF180508GC |
| 5578750 | TCF560R4SL50MG | 56,00 | 57,00 | 50 | 275,7 | 224,0 | 2,37 | G | TCF150512GP | TCF180508GC |
| 5538647 | TCF570R4SL50MH | 57,00 | 58,00 | 50 | 279,5 | 228,0 | 1,76 | H | TCF180614HP | TCF210608HC |
| 5538648 | TCF580R4SL50MH | 58,00 | 59,00 | 50 | 283,9 | 232,0 | 1,85 | H | TCF180614HP | TCF210608HC |
| 5538649 | TCF590R4SL50MH | 59,00 | 60,00 | 50 | 288,2 | 236,0 | 1,96 | H | TCF180614HP | TCF210608HC |
| 5538650 | TCF600R4SL50MH | 60,00 | 61,00 | 50 | 292,5 | 240,0 | 1,42 | H | TCF180614HP | TCF210608HC |
| 5538651 | TCF610R4SL50MH | 61,00 | 62,00 | 50 | 296,8 | 244,0 | 2,23 | H | TCF180614HP | TCF210608HC |
| 5538652 | TCF620R4SL50MH | 62,00 | 63,00 | 50 | 301,1 | 248,0 | 2,41 | H | TCF180614HP | TCF210608HC |
| 5538653 | TCF630R4SL50MH | 63,00 | 64,00 | 50 | 305,5 | 252,0 | 2,64 | H | TCF180614HP | TCF210608HC |
| 5538654 | TCF640R4SL50MH | 64,00 | 65,00 | 50 | 309,8 | 256,0 | 2,94 | H | TCF180614HP | TCF210608HC |
| 5538655 | TCF650R4SL50MH | 65,00 | 66,00 | 50 | 314,1 | 260,0 | 3,06 | H | TCF180614HP | TCF210608HC |
| 5538656 | TCF660R4SL50MH | 66,00 | 67,00 | 50 | 318,4 | 264,0 | 3,18 | H | TCF180614HP | TCF210608HC |
| 5538657 | TCF670R4SL50MH | 67,00 | 68,00 | 50 | 322,7 | 268,0 | 3,30 | H | TCF180614HP | TCF210608HC |
| 5538658 | TCF680R4SL50MH | 68,00 | 69,00 | 50 | 327,1 | 272,0 | 2,93 | H | TCF180614HP | TCF210608HC |
(continued)
