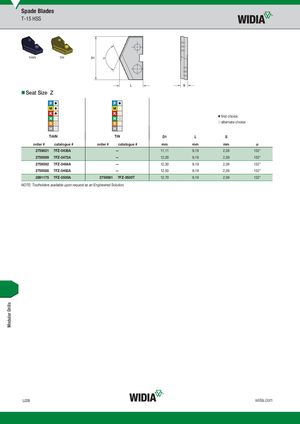

TiAlN TiN
Seat Size Z
first choice alternate choice
| D1 | L | S | ||||
| TiAlNTiAlN | TiNTiN | D1 | L | S | ||
| order # catalogue # | order # catalogue # | mm | mm | mm | m | |
| 2759621 7FZ-0438A | — | 11,11 | 9,19 | 2,39 | 132° | |
| 2759599 7FZ-0472A | — | 12,00 | 9,19 | 2,39 | 132° | |
| 2759592 7FZ-0484A | — | 12,30 | 9,19 | 2,39 | 132° | |
| 2759588 7FZ-0492A | — | 12,50 | 9,19 | 2,39 | 132° | |
| 2891175 7FZ-0500A | 2759581 7FZ-0500T | 12,70 | 9,19 | 2,39 | 132° |
NOTE: Toolholders available upon request as an Engineered Solution.
