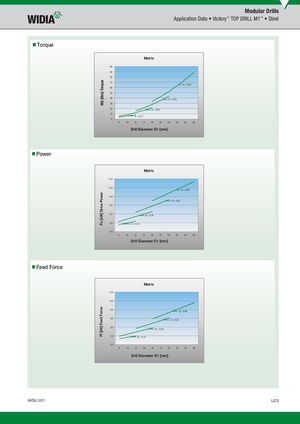

Application Data • Victory™ TOP DRILL M1™ • Steel
- Torque
100 90 80 70 60 50 40 30 20 10 0
8
Metric
fz = 0,45
fz = 0,35
fz = 0,25
fz = 0,15
10 12 14 16 18 20 22 24 26
Drill Diameter D1 [mm]
- Power
12.0
10.0
8.0
6.0
4.0
2.0
0.0
8
Metric
fz = 0,45
fz = 0,35
fz = 0,25
fz = 0,15
10 12 14 16 18 20 22 24 26
Drill Diameter D1 [mm]
- Feed Force
12.0
10.0
8.0
6.0
4.0
2.0
0.0
8
Metric
fz = 0,45
fz = 0,35
fz = 0,25
fz = 0,15
10 12 14 16 18 20 22 24 26
Drill Diameter D1 [mm]
