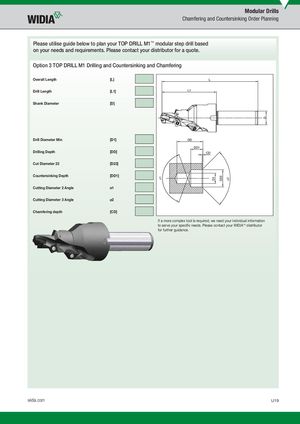

Chamfering and Countersinking Order Planning
Please utilise guide below to plan your TOP DRILL M1™ modular step drill based
on your needs and requirements. Please contact your distributor for a quote.
Option 3 TOP DRILL M1 Drilling and Countersinking and Chamfering
Overall Length [L]
Drill Length [L1]
Shank Diameter [D]
| Drill Diameter Min | [D1] |
| Drilling Depth | [DD] |
| Cut Diameter 23 | [D23] |
| Countersinking Depth | [DD1] |
| Cutting Diameter 2 Angle | m1 |
| Cutting Diameter 3 Angle | m2 |
| Chamfering depth | [CD] |
If a more complex tool is required, we need your individual information to serve your specifi c needs. Please contact your WIDIA™ distributor for further guidance.
