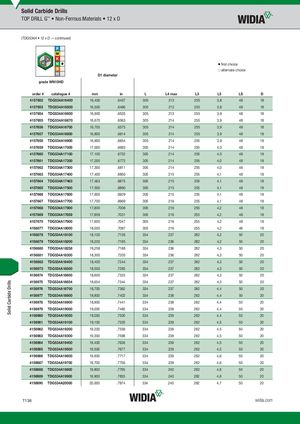

(TDG534A • 12 x D — continued)
first choice alternate choice D1 diameter grade WN10HDWN10HD
| order # catalogue # | mm | in | L | L4 max | L3 | L5 | LS | D |
| 4157652 TDG534A16400 | 16,400 | .6457 | 305 | 213 | 255 | 3,8 | 48 | 18 |
| 4157653 TDG534A16500 | 16,500 | .6496 | 305 | 213 | 255 | 3,8 | 48 | 18 |
| 4157654 TDG534A16600 | 16,600 | .6535 | 305 | 213 | 255 | 3,9 | 48 | 18 |
| 4157655 TDG534A16670 | 16,670 | .6563 | 305 | 214 | 255 | 3,9 | 48 | 18 |
| 4157656 TDG534A16700 | 16,700 | .6575 | 305 | 214 | 255 | 3,9 | 48 | 18 |
| 4157657 TDG534A16800 | 16,800 | .6614 | 305 | 214 | 255 | 3,9 | 48 | 18 |
| 4157658 TDG534A16900 | 16,900 | .6654 | 305 | 214 | 255 | 3,9 | 48 | 18 |
| 4157659 TDG534A17000 | 17,000 | .6693 | 305 | 214 | 255 | 4,0 | 48 | 18 |
| 4157660 TDG534A17100 | 17,100 | .6732 | 305 | 214 | 255 | 4,0 | 48 | 18 |
| 4157661 TDG534A17200 | 17,200 | .6772 | 305 | 214 | 255 | 4,0 | 48 | 18 |
| 4157662 TDG534A17300 | 17,300 | .6811 | 305 | 214 | 255 | 4,0 | 48 | 18 |
| 4157663 TDG534A17400 | 17,400 | .6850 | 305 | 215 | 255 | 4,1 | 48 | 18 |
| 4157664 TDG534A17463 | 17,463 | .6875 | 305 | 215 | 255 | 4,1 | 48 | 18 |
| 4157665 TDG534A17500 | 17,500 | .6890 | 305 | 215 | 255 | 4,1 | 48 | 18 |
| 4157666 TDG534A17600 | 17,600 | .6929 | 305 | 215 | 255 | 4,1 | 48 | 18 |
| 4157667 TDG534A17700 | 17,700 | .6969 | 305 | 216 | 255 | 4,1 | 48 | 18 |
| 4157668 TDG534A17800 | 17,800 | .7008 | 305 | 216 | 255 | 4,2 | 48 | 18 |
| 4157669 TDG534A17859 | 17,859 | .7031 | 305 | 216 | 255 | 4,2 | 48 | 18 |
| 4157670 TDG534A17900 | 17,900 | .7047 | 305 | 216 | 255 | 4,2 | 48 | 18 |
| 4156877 TDG534A18000 | 18,000 | .7087 | 305 | 216 | 255 | 4,2 | 48 | 18 |
| 4156878 TDG534A18100 | 18,100 | .7126 | 334 | 237 | 282 | 4,2 | 50 | 20 |
| 4156879 TDG534A18200 | 18,200 | .7165 | 334 | 236 | 282 | 4,2 | 50 | 20 |
| 4156880 TDG534A18258 | 18,258 | .7188 | 334 | 236 | 282 | 4,3 | 50 | 20 |
| 4156881 TDG534A18300 | 18,300 | .7205 | 334 | 236 | 282 | 4,3 | 50 | 20 |
| 4156882 TDG534A18400 | 18,400 | .7244 | 334 | 237 | 282 | 4,3 | 50 | 20 |
| 4156973 TDG534A18500 | 18,500 | .7283 | 334 | 237 | 282 | 4,3 | 50 | 20 |
| 4156974 TDG534A18600 | 18,600 | .7323 | 334 | 237 | 282 | 4,3 | 50 | 20 |
| 4156975 TDG534A18654 | 18,654 | .7344 | 334 | 237 | 282 | 4,3 | 50 | 20 |
| 4156976 TDG534A18700 | 18,700 | .7362 | 334 | 237 | 282 | 4,4 | 50 | 20 |
| 4156977 TDG534A18800 | 18,800 | .7402 | 334 | 238 | 282 | 4,4 | 50 | 20 |
| 4156978 TDG534A18900 | 18,900 | .7441 | 334 | 238 | 282 | 4,4 | 50 | 20 |
| 4156979 TDG534A19000 | 19,000 | .7480 | 334 | 238 | 282 | 4,4 | 50 | 20 |
| 4156980 TDG534A19050 | 19,050 | .7500 | 334 | 239 | 282 | 4,4 | 50 | 20 |
| 4156981 TDG534A19100 | 19,100 | .7520 | 334 | 239 | 282 | 4,5 | 50 | 20 |
| 4156982 TDG534A19200 | 19,200 | .7559 | 334 | 238 | 282 | 4,5 | 50 | 20 |
| 4156983 TDG534A19300 | 19,300 | .7598 | 334 | 238 | 282 | 4,5 | 50 | 20 |
| 4156984 TDG534A19400 | 19,400 | .7638 | 334 | 239 | 282 | 4,5 | 50 | 20 |
| 4156985 TDG534A19500 | 19,500 | .7677 | 334 | 239 | 282 | 4,5 | 50 | 20 |
| 4156986 TDG534A19600 | 19,600 | .7717 | 334 | 239 | 282 | 4,6 | 50 | 20 |
| 4156987 TDG534A19700 | 19,700 | .7756 | 334 | 239 | 282 | 4,6 | 50 | 20 |
| 4156988 TDG534A19800 | 19,800 | .7795 | 334 | 240 | 282 | 4,6 | 50 | 20 |
| 4156989 TDG534A19900 | 19,900 | .7835 | 334 | 240 | 282 | 4,6 | 50 | 20 |
| 4156990 TDG534A20000 | 20,000 | .7874 | 334 | 240 | 282 | 4,7 | 50 | 20 |
