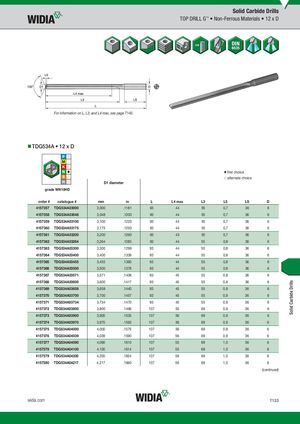

For information on L, L3, and L4 max, see page T143.
TDG534A • 12 x D
first choice alternate choice
| D1 dia | meter | �altern | ate choice | ||||||
| grad | WN10HD e WN10HD | ||||||||
| order # | catalogue # | mm | in | L | L4 max | L3 | L5 | LS | D |
| 4157357 | TDG534A03000 | 3,000 | .1181 | 93 | 44 | 55 | 0,7 | 36 | 6 |
| 4157358 | TDG534A03048 | 3,048 | .1200 | 93 | 44 | 55 | 0,7 | 36 | 6 |
| 4157359 | TDG534A03100 | 3,100 | .1220 | 93 | 44 | 55 | 0,7 | 36 | 6 |
| 4157360 | TDG534A03175 | 3,175 | .1250 | 93 | 44 | 55 | 0,7 | 36 | 6 |
| 4157361 | TDG534A03200 | 3,200 | .1260 | 93 | 43 | 55 | 0,7 | 36 | 6 |
| 4157362 | TDG534A03264 | 3,264 | .1285 | 93 | 44 | 55 | 0,8 | 36 | 6 |
| 4157363 | TDG534A03300 | 3,300 | .1299 | 93 | 44 | 55 | 0,8 | 36 | 6 |
| 4157364 | TDG534A03400 | 3,400 | .1339 | 93 | 44 | 55 | 0,8 | 36 | 6 |
| 4157365 | TDG534A03455 | 3,455 | .1360 | 93 | 44 | 55 | 0,8 | 36 | 6 |
| 4157366 | TDG534A03500 | 3,500 | .1378 | 93 | 44 | 55 | 0,8 | 36 | 6 |
| 4157367 | TDG534A03571 | 3,571 | .1406 | 93 | 45 | 55 | 0,8 | 36 | 6 |
| 4157368 | TDG534A03600 | 3,600 | .1417 | 93 | 45 | 55 | 0,8 | 36 | 6 |
| 4157369 | TDG534A03658 | 3,658 | .1440 | 93 | 45 | 55 | 0,9 | 36 | 6 |
| 4157370 | TDG534A03700 | 3,700 | .1457 | 93 | 45 | 55 | 0,9 | 36 | 6 |
| 4157371 | TDG534A03734 | 3,734 | .1470 | 93 | 45 | 55 | 0,9 | 36 | 6 |
| 4157372 | TDG534A03800 | 3,800 | .1496 | 107 | 55 | 69 | 0,9 | 36 | 6 |
| 4157373 | TDG534A03900 | 3,900 | .1535 | 107 | 56 | 69 | 0,9 | 36 | 6 |
| 4157374 | TDG534A03970 | 3,970 | .1563 | 107 | 56 | 69 | 0,9 | 36 | 6 |
| 4157375 | TDG534A04000 | 4,000 | .1575 | 107 | 56 | 69 | 0,9 | 36 | 6 |
| 4157376 | TDG534A04039 | 4,039 | .1590 | 107 | 56 | 69 | 0,9 | 36 | 6 |
| 4157377 | TDG534A04090 | 4,090 | .1610 | 107 | 55 | 69 | 1,0 | 36 | 6 |
| 4157378 | TDG534A04100 | 4,100 | .1614 | 107 | 55 | 69 | 1,0 | 36 | 6 |
| 4157379 | TDG534A04200 | 4,200 | .1654 | 107 | 56 | 69 | 1,0 | 36 | 6 |
| 4157380 | TDG534A04217 | 4,217 | .1660 | 107 | 56 | 69 | 1,0 | 36 | 6 |
