- Material Overview • DIN
For information on L, L3, and L4 max, see page T143.

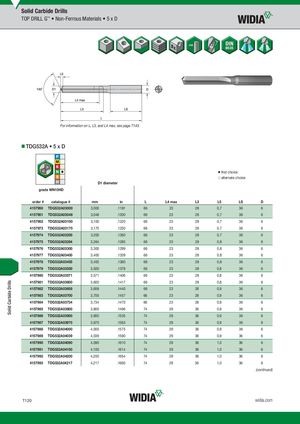

TDG532A • 5 x D
first choice alternate choice D1 diameter
| WN10HD grade WN10HD | D1 dia | meter | ||||||
| order # catalogue # | mm | in | L | L4 max | L3 | L5 | LS | D |
| 4157950 TDG532A03000 | 3,000 | .1181 | 66 | 23 | 28 | 0,7 | 36 | 6 |
| 4157951 TDG532A03048 | 3,048 | .1200 | 66 | 23 | 28 | 0,7 | 36 | 6 |
| 4157952 TDG532A03100 | 3,100 | .1220 | 66 | 23 | 28 | 0,7 | 36 | 6 |
| 4157973 TDG532A03175 | 3,175 | .1250 | 66 | 23 | 28 | 0,7 | 36 | 6 |
| 4157974 TDG532A03200 | 3,200 | .1260 | 66 | 23 | 28 | 0,7 | 36 | 6 |
| 4157975 TDG532A03264 | 3,264 | .1285 | 66 | 23 | 28 | 0,8 | 36 | 6 |
| 4157976 TDG532A03300 | 3,300 | .1299 | 66 | 23 | 28 | 0,8 | 36 | 6 |
| 4157977 TDG532A03400 | 3,400 | .1339 | 66 | 23 | 28 | 0,8 | 36 | 6 |
| 4157978 TDG532A03455 | 3,455 | .1360 | 66 | 23 | 28 | 0,8 | 36 | 6 |
| 4157979 TDG532A03500 | 3,500 | .1378 | 66 | 23 | 28 | 0,8 | 36 | 6 |
| 4157980 TDG532A03571 | 3,571 | .1406 | 66 | 23 | 28 | 0,8 | 36 | 6 |
| 4157981 TDG532A03600 | 3,600 | .1417 | 66 | 23 | 28 | 0,8 | 36 | 6 |
| 4157982 TDG532A03658 | 3,658 | .1440 | 66 | 23 | 28 | 0,9 | 36 | 6 |
| 4157983 TDG532A03700 | 3,700 | .1457 | 66 | 23 | 28 | 0,9 | 36 | 6 |
| 4157984 TDG532A03734 | 3,734 | .1470 | 66 | 23 | 28 | 0,9 | 36 | 6 |
| 4157985 TDG532A03800 | 3,800 | .1496 | 74 | 29 | 36 | 0,9 | 36 | 6 |
| 4157986 TDG532A03900 | 3,900 | .1535 | 74 | 29 | 36 | 0,9 | 36 | 6 |
| 4157987 TDG532A03970 | 3,970 | .1563 | 74 | 29 | 36 | 0,9 | 36 | 6 |
| 4157988 TDG532A04000 | 4,000 | .1575 | 74 | 29 | 36 | 0,9 | 36 | 6 |
| 4157989 TDG532A04039 | 4,039 | .1590 | 74 | 29 | 36 | 0,9 | 36 | 6 |
| 4157990 TDG532A04090 | 4,090 | .1610 | 74 | 29 | 36 | 1,0 | 36 | 6 |
| 4157991 TDG532A04100 | 4,100 | .1614 | 74 | 29 | 36 | 1,0 | 36 | 6 |
| 4157992 TDG532A04200 | 4,200 | .1654 | 74 | 29 | 36 | 1,0 | 36 | 6 |
| 4157993 TDG532A04217 | 4,217 | .1660 | 74 | 29 | 36 | 1,0 | 36 | 6 |
