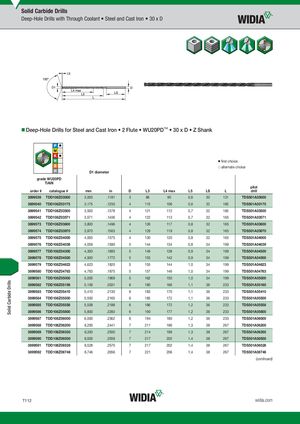

Deep-Hole Drills for Steel and Cast Iron • 2 Flute • WU20PD™ • 30 x D • Z Shank
| �first choi | i ce | ||||||||
| �alternate | choice | ||||||||
| D1 dia | meter | ||||||||
| WU20PD grade WU20PD TiAlN | il | ||||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L | pot drill |
| 3899539 TDD108Z03000 | 3,000 | .1181 | 3 | 98 | 90 | 0,6 | 30 | 131 | TDS501A03000 |
| 3899540 TDD108Z03175 | 3,175 | .1250 | 4 | 115 | 106 | 0,6 | 32 | 165 | TDS501A03175 |
| 3899541 TDD108Z03500 | 3,500 | .1378 | 4 | 121 | 112 | 0,7 | 32 | 165 | TDS501A03500 |
| 3899542 TDD108Z03571 | 3,571 | .1406 | 4 | 122 | 113 | 0,7 | 32 | 165 | TDS501A03571 |
| 3899573 TDD108Z03800 | 3,800 | .1496 | 4 | 126 | 117 | 0,8 | 32 | 165 | TDS501A03800 |
| 3899574 TDD108Z03970 | 3,970 | .1563 | 4 | 129 | 119 | 0,8 | 32 | 165 | TDS501A03970 |
| 3899575 TDD108Z04000 | 4,000 | .1575 | 4 | 130 | 120 | 0,8 | 32 | 165 | TDS501A04000 |
| 3899576 TDD108Z04039 | 4,039 | .1590 | 5 | 144 | 134 | 0,8 | 34 | 199 | TDS501A04039 |
| 3899577 TDD108Z04300 | 4,300 | .1693 | 5 | 149 | 138 | 0,9 | 34 | 199 | TDS501A04300 |
| 3899578 TDD108Z04500 | 4,500 | .1772 | 5 | 153 | 142 | 0,9 | 34 | 199 | TDS501A04500 |
| 3899579 TDD108Z04623 | 4,623 | .1820 | 5 | 155 | 144 | 1,0 | 34 | 199 | TDS501A04623 |
| 3899580 TDD108Z04763 | 4,763 | .1875 | 5 | 157 | 146 | 1,0 | 34 | 199 | TDS501A04763 |
| 3899581 TDD108Z05000 | 5,000 | .1969 | 5 | 162 | 150 | 1,0 | 34 | 199 | TDS501A05000 |
| 3899582 TDD108Z05159 | 5,159 | .2031 | 6 | 180 | 166 | 1,1 | 36 | 233 | TDS501A05160 |
| 3899583 TDD108Z05410 | 5,410 | .2130 | 6 | 183 | 170 | 1,1 | 36 | 233 | TDS501A05410 |
| 3899584 TDD108Z05500 | 5,500 | .2165 | 6 | 185 | 172 | 1,1 | 36 | 233 | TDS501A05500 |
| 3899585 TDD108Z05558 | 5,558 | .2188 | 6 | 186 | 172 | 1,2 | 36 | 233 | TDS501A05558 |
| 3899586 TDD108Z05800 | 5,800 | .2283 | 6 | 190 | 177 | 1,2 | 36 | 233 | TDS501A05800 |
| 3899587 TDD108Z06000 | 6,000 | .2362 | 6 | 194 | 180 | 1,2 | 36 | 233 | TDS501A06000 |
| 3899588 TDD108Z06200 | 6,200 | .2441 | 7 | 211 | 196 | 1,3 | 38 | 267 | TDS501A06200 |
| 3899589 TDD108Z06350 | 6,350 | .2500 | 7 | 214 | 199 | 1,3 | 38 | 267 | TDS501A06350 |
| 3899590 TDD108Z06500 | 6,500 | .2559 | 7 | 217 | 202 | 1,4 | 38 | 267 | TDS501A06500 |
| 3899591 TDD108Z06528 | 6,528 | .2570 | 7 | 217 | 202 | 1,4 | 38 | 267 | TDS501A06528 |
| 3899592 TDD108Z06746 | 6,746 | .2656 | 7 | 221 | 206 | 1,4 | 38 | 267 | TDS501A06746 |
