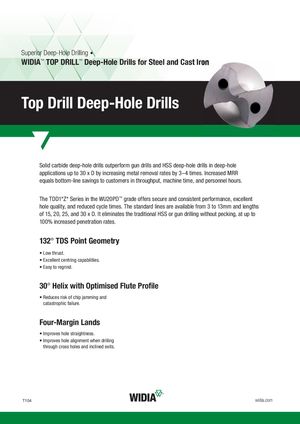

Superior Deep-Hole Drilling
WIDIA™ TOP DRILL™ Deep-Hole Drills for Steel and Cast Iron
Top Drill Deep-Hole Drills
Solid carbide deep-hole drills outperform gun drills and HSS deep-hole drills in deep-hole applications up to 30 x D by increasing metal removal rates by 3–4 times. Increased MRR equals bottom-line savings to customers in throughput, machine time, and personnel hours.
The TDD1*Z* Series in the WU20PD™ grade offers secure and consistent performance, excellent hole quality, and reduced cycle times. The standard lines are available from 3 to 13mm and lengths of 15, 20, 25, and 30 x D. It eliminates the traditional HSS or gun drilling without pecking, at up to 100% increased penetration rates.
132° TDS Point Geometry
- Low thrust.
- Excellent centring capabilities.
- Easy to regrind.
30° Helix with Optimised Flute Profi le
- Reduces risk of chip jamming and catastrophic failure.
Four-Margin Lands
- Improves hole straightness.
- Improves hole alignment when drilling through cross holes and inclined exits.
