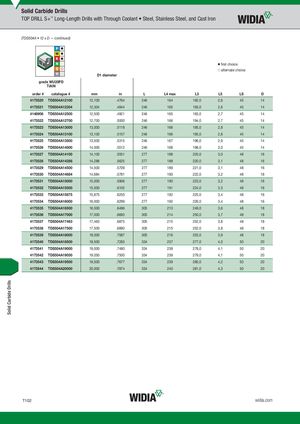

(TDS504A • 12 x D — continued)
| �first ch | i oice | |||||||
| D1 dia | meter | �altern | ate choice | |||||
| TDS504A • WU20PD grade WU20PD TiAlN | ||||||||
| order # catalogue # | mm | in | L | L4 max | L3 | L5 | LS | D |
| 4173520 TDS504A12100 | 12,100 | .4764 | 246 | 164 | 192,0 | 2,6 | 45 | 14 |
| 4173521 TDS504A12304 | 12,304 | .4844 | 246 | 165 | 193,0 | 2,6 | 45 | 14 |
| 4148906 TDS504A12500 | 12,500 | .4921 | 246 | 165 | 193,0 | 2,7 | 45 | 14 |
| 4173522 TDS504A12700 | 12,700 | .5000 | 246 | 166 | 194,0 | 2,7 | 45 | 14 |
| 4173523 TDS504A13000 | 13,000 | .5118 | 246 | 166 | 195,0 | 2,8 | 45 | 14 |
| 4173524 TDS504A13100 | 13,100 | .5157 | 246 | 166 | 195,0 | 2,8 | 45 | 14 |
| 4173525 TDS504A13500 | 13,500 | .5315 | 246 | 167 | 196,0 | 2,9 | 45 | 14 |
| 4173526 TDS504A14000 | 14,000 | .5512 | 246 | 168 | 198,0 | 3,0 | 45 | 14 |
| 4173527 TDS504A14100 | 14,100 | .5551 | 277 | 188 | 220,0 | 3,0 | 48 | 16 |
| 4173528 TDS504A14288 | 14,288 | .5625 | 277 | 188 | 220,0 | 3,1 | 48 | 16 |
| 4173529 TDS504A14500 | 14,500 | .5709 | 277 | 189 | 221,0 | 3,1 | 48 | 16 |
| 4173530 TDS504A14684 | 14,684 | .5781 | 277 | 190 | 222,0 | 3,2 | 48 | 16 |
| 4173531 TDS504A15000 | 15,000 | .5906 | 277 | 190 | 223,0 | 3,2 | 48 | 16 |
| 4173532 TDS504A15500 | 15,500 | .6102 | 277 | 191 | 224,0 | 3,3 | 48 | 16 |
| 4173533 TDS504A15875 | 15,875 | .6250 | 277 | 192 | 225,0 | 3,4 | 48 | 16 |
| 4173534 TDS504A16000 | 16,000 | .6299 | 277 | 192 | 226,0 | 3,4 | 48 | 16 |
| 4173535 TDS504A16500 | 16,500 | .6496 | 305 | 213 | 249,0 | 3,6 | 48 | 18 |
| 4173536 TDS504A17000 | 17,000 | .6693 | 305 | 214 | 250,0 | 3,7 | 48 | 18 |
| 4173537 TDS504A17463 | 17,463 | .6875 | 305 | 215 | 252,0 | 3,8 | 48 | 18 |
| 4173538 TDS504A17500 | 17,500 | .6890 | 305 | 215 | 252,0 | 3,8 | 48 | 18 |
| 4173539 TDS504A18000 | 18,000 | .7087 | 305 | 216 | 253,0 | 3,9 | 48 | 18 |
| 4173540 TDS504A18500 | 18,500 | .7283 | 334 | 237 | 277,0 | 4,0 | 50 | 20 |
| 4173541 TDS504A19000 | 19,000 | .7480 | 334 | 238 | 278,0 | 4,1 | 50 | 20 |
| 4173542 TDS504A19050 | 19,050 | .7500 | 334 | 239 | 279,0 | 4,1 | 50 | 20 |
| 4173543 TDS504A19500 | 19,500 | .7677 | 334 | 239 | 280,0 | 4,2 | 50 | 20 |
| 4173544 TDS504A20000 | 20,000 | .7874 | 334 | 240 | 281,0 | 4,3 | 50 | 20 |
