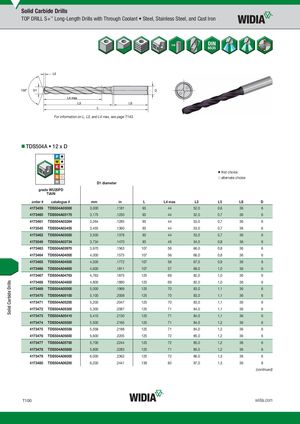

For information on L, L3, and L4 max, see page T143.
TDS504A • 12 x D
first choice
| �first ch | i oice | |||||||
| D1 dia | meter | �altern | ate choice | |||||
| TDS504A • WU20PD grade WU20PD TiAlN | ||||||||
| order # catalogue # | mm | in | L | L4 max | L3 | L5 | LS | D |
| 4173459 TDS504A03000 | 3,000 | .1181 | 93 | 44 | 52,0 | 0,6 | 36 | 6 |
| 4173460 TDS504A03175 | 3,175 | .1250 | 93 | 44 | 52,0 | 0,7 | 36 | 6 |
| 4173461 TDS504A03264 | 3,264 | .1285 | 93 | 44 | 53,0 | 0,7 | 36 | 6 |
| 4173545 TDS504A03455 | 3,455 | .1360 | 93 | 44 | 53,0 | 0,7 | 36 | 6 |
| 4173462 TDS504A03500 | 3,500 | .1378 | 93 | 44 | 53,0 | 0,7 | 36 | 6 |
| 4173546 TDS504A03734 | 3,734 | .1470 | 93 | 45 | 54,0 | 0,8 | 36 | 6 |
| 4173463 TDS504A03970 | 3,970 | .1563 | 107 | 56 | 66,0 | 0,8 | 36 | 6 |
| 4173464 TDS504A04000 | 4,000 | .1575 | 107 | 56 | 66,0 | 0,8 | 36 | 6 |
| 4173465 TDS504A04500 | 4,500 | .1772 | 107 | 56 | 67,0 | 0,9 | 36 | 6 |
| 4173466 TDS504A04600 | 4,600 | .1811 | 107 | 57 | 68,0 | 1,0 | 36 | 6 |
| 4173467 TDS504A04763 | 4,763 | .1875 | 125 | 69 | 82,0 | 1,0 | 36 | 6 |
| 4173468 TDS504A04800 | 4,800 | .1890 | 125 | 69 | 82,0 | 1,0 | 36 | 6 |
| 4173469 TDS504A05000 | 5,000 | .1969 | 125 | 70 | 83,0 | 1,1 | 36 | 6 |
| 4173470 TDS504A05100 | 5,100 | .2008 | 125 | 70 | 83,0 | 1,1 | 36 | 6 |
| 4173471 TDS504A05200 | 5,200 | .2047 | 125 | 70 | 83,0 | 1,1 | 36 | 6 |
| 4173472 TDS504A05300 | 5,300 | .2087 | 125 | 71 | 84,0 | 1,1 | 36 | 6 |
| 4173473 TDS504A05410 | 5,410 | .2130 | 125 | 71 | 84,0 | 1,1 | 36 | 6 |
| 4173474 TDS504A05500 | 5,500 | .2165 | 125 | 71 | 84,0 | 1,2 | 36 | 6 |
| 4173475 TDS504A05558 | 5,558 | .2188 | 125 | 71 | 84,0 | 1,2 | 36 | 6 |
| 4173476 TDS504A05600 | 5,600 | .2205 | 125 | 72 | 85,0 | 1,2 | 36 | 6 |
| 4173477 TDS504A05700 | 5,700 | .2244 | 125 | 72 | 85,0 | 1,2 | 36 | 6 |
| 4173478 TDS504A05800 | 5,800 | .2283 | 125 | 71 | 85,0 | 1,2 | 36 | 6 |
| 4173479 TDS504A06000 | 6,000 | .2362 | 125 | 72 | 86,0 | 1,3 | 36 | 6 |
| 4173480 TDS504A06200 | 6,200 | .2441 | 139 | 82 | 97,0 | 1,3 | 36 | 8 |
