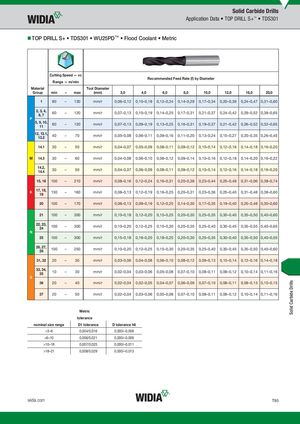

Application Data • TOP DRILL S+™ • TDS301
TOP DRILL S+ • TDS301 • WU25PD™ • Flood Coolant • Metric
| Cutting | Spe | ed — vc | Rec | ommended F | eed Rate (f) b | y Diameter | ||||||
| Rang | e — | m/min | ||||||||||
| Material | Tool Diameter | |||||||||||
| Group | min | – | max | (mm) | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| 1 | 80 | – | 130 | mm/r | 0,06–0,12 | 0,10–0,18 | 0,12–0,24 | 0,14–0,29 | 0,17–0,34 | 0,20–0,39 | 0,24–0,47 | 0,31–0,60 |
| P 2, 3, 4, 6, 7 | 60 | – | 120 | mm/r | 0,07–0,13 | 0,10–0,19 | 0,14–0,25 | 0,17–0,31 | 0,21–0,37 | 0,24–0,42 | 0,29–0,52 | 0,38–0,65 |
| 5, 9, 10, 11 | 60 | – | 120 | mm/r | 0,07–0,13 | 0,09–0,19 | 0,13–0,25 | 0,16–0,31 | 0,19–0,37 | 0,21–0,42 | 0,26–0,52 | 0,32–0,65 |
| 12, 13.1, 13.2 | 40 | – | 70 | mm/r | 0,05–0,08 | 0,06–0,11 | 0,09–0,16 | 0,11–0,20 | 0,13–0,24 | 0,15–0,27 | 0,20–0,35 | 0,26–0,45 |
| 14.1 | 30 | – | 50 | mm/r | 0,04–0,07 | 0,05–0,09 | 0,08–0,11 | 0,09–0,12 | 0,10–0,14 | 0,12–0,16 | 0,14–0,18 | 0,16–0,20 |
| M 14.3 | 30 | – | 60 | mm/r | 0,04–0,08 | 0,06–0,10 | 0,08–0,12 | 0,09–0,14 | 0,10–0,16 | 0,12–0,18 | 0,14–0,20 | 0,16–0,22 |
| 14.2, 14.4 | 30 | – | 50 | mm/r | 0,04–0,07 | 0,06–0,09 | 0,08–0,11 | 0,09–0,12 | 0,10–0,14 | 0,12–0,16 | 0,14–0,18 | 0,16–0,20 |
| 15, 16 | 100 | – | 210 | mm/r | 0,08–0,16 | 0,12–0,24 | 0,16–0,31 | 0,20–0,38 | 0,23–0,44 | 0,25–0,49 | 0,31–0,06 | 0,38–0,74 |
| K 17, 18, 19 | 130 | – | 160 | mm/r | 0,08–0,13 | 0,12–0,19 | 0,16–0,25 | 0,20–0,31 | 0,23–0,36 | 0,25–0,40 | 0,31–0,48 | 0,38–0,60 |
| 20 | 100 | – | 170 | mm/r | 0,06–0,13 | 0,09–0,19 | 0,12–0,25 | 0,14–0,30 | 0,17–0,35 | 0,19–0,40 | 0,25–0,48 | 0,30–0,60 |
| 21 | 100 | – | 300 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,15–0,25 | 0,20–0,30 | 0,25–0,35 | 0,30–0,40 | 0,35–0,50 | 0,40–0,60 |
| 22, 23, 24 | 100 | – | 300 | mm/r | 0,10–0,20 | 0,12–0,25 | 0,15–0,30 | 0,20–0,35 | 0,25–0,40 | 0,30–0,45 | 0,35–0,55 | 0,40–0,65 |
| N 25 | 100 | – | 300 | mm/r | 0,15–0,18 | 0,16–0,20 | 0,18–0,25 | 0,20–0,30 | 0,25–0,35 | 0,30–0,40 | 0,35–0,50 | 0,40–0,55 |
| 26, 27, 28 | 100 | – | 250 | mm/r | 0,10–0,20 | 0,12–0,25 | 0,15–0,30 | 0,20–0,35 | 0,25–0,40 | 0,30–0,45 | 0,35–0,50 | 0,40–0,60 |
| 31, 32 | 20 | – | 30 | mm/r | 0,03–0,06 | 0,04–0,08 | 0,06–0,10 | 0,08–0,12 | 0,09–0,13 | 0,10–0,14 | 0,12–0,16 | 0,14–0,18 |
| 33, 34, 35 | 10 | – | 30 | mm/r | 0,02–0,04 | 0,03–0,06 | 0,05–0,08 | 0,07–0,10 | 0,08–0,11 | 0,09–0,12 | 0,10–0,14 | 0,11–0,16 |
| S 36 | 20 | – | 40 | mm/r | 0,02–0,04 | 0,02–0,05 | 0,04–0,07 | 0,06–0,09 | 0,07–0,10 | 0,08–0,11 | 0,09–0,13 | 0,10–0,15 |
| 37 | 20 | – | 50 | mm/r | 0,02–0,04 | 0,03–0,06 | 0,05–0,08 | 0,07–0,10 | 0,08–0,11 | 0,09–0,12 | 0,10–0,14 | 0,11–0,16 |
Metric tolerance
| nominal size range | D1 tolerance | D tolerance h6 | |
| >3–6 | 0,004/0,016 | 0,000/–0,008 | |
| >6–10 | 0,006/0,021 | 0,000/–0,009 |
| nominal size range | D1 tolerance | D tolerance h6 |
| >3–6 | 0,004/0,016 | 0,000/–0,008 |
| >6–10 | 0,006/0,021 | 0,000/–0,009 |
| >10–18 | 0,007/0,025 | 0,000/–0,011 |
| >18–21 | 0,008/0,029 | 0,000/–0,013 |
