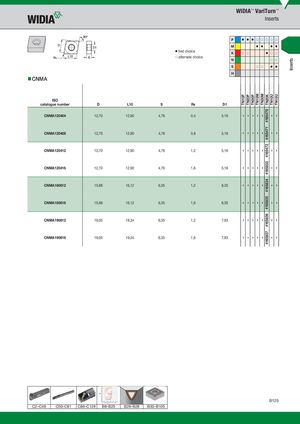

WIDIA™ VariTurn™ Inserts P         M      first choice K       alternate choice Inserts N   S     H „ CNMA TN15M TN30M TN10U TN15U TN20K TN10P TN20P TN30P ISO catalogue number D L10 S R¡ D1 4165470 CNMA120404 12,70 12,90 4,76 0,4 5,16 – – – – – – – 4165471 CNMA120408 12,70 12,90 4,76 0,8 5,16 – – – – – – – 4165472 CNMA120412 12,70 12,90 4,76 1,2 5,16 – – – – – – – 4165833 CNMA120416 12,70 12,90 4,76 1,6 5,16 – – – – – – – 4165834 CNMA160612 15,88 16,12 6,35 1,2 6,35 – – – – – – – 4165835 CNMA160616 15,88 16,12 6,35 1,6 6,35 – – – – – – – 4165836 CNMA190612 19,05 19,34 6,35 1,2 7,93 – – – – – – – 4165837 CNMA190616 19,05 19,34 6,35 1,6 7,93 – – – – – – – B125 C2–C49 C50–C81 C86–C129 B8–B25 B26–B28 B30–B105 WID_Master16_Turning_Inserts_B124_B125_Metric_REBRAND.indd 125 L V i WID M 16 T i I B124 B125 M i REBRANDO b 1520159 10/30/15 38AM 2:50 PM
