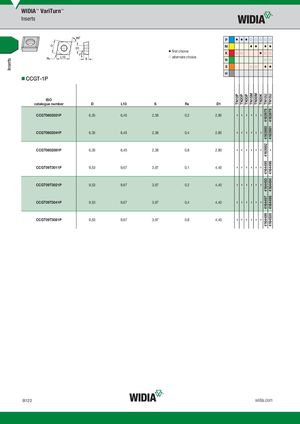

WIDIA™ VariTurn™ Inserts P         M      first choice K       alternate choice Inserts N   S     H „ CCGT-1P TN15M TN30M TN10U TN15U TN20K TN10P TN20P TN30P ISO catalogue number D L10 S R¡ D1 4163978 4163979 CCGT0602021P 6,35 6,45 2,38 0,2 2,80 – – – – – – 4163980 4163981 CCGT0602041P 6,35 6,45 2,38 0,4 2,80 – – – – – – 4163982 CCGT0602081P 6,35 6,45 2,38 0,8 2,80 – – – – – – – 4164495 4164496 CCGT09T3011P 9,53 9,67 3,97 0,1 4,40 – – – – – – 4164493 4164494 CCGT09T3021P 9,53 9,67 3,97 0,2 4,40 – – – – – – 4164497 4164498 CCGT09T3041P 9,53 9,67 3,97 0,4 4,40 – – – – – – 4164499 4164500 CCGT09T3081P 9,53 9,67 3,97 0,8 4,40 – – – – – – B122 widia.com LWID_Master16_Turning_Inserts_B122_B123_Metric_REBRAND.indd V i WID M 16 T i I B122 122 B123 M i REBRAND N b 11 2015 7 31 AM 11/11/15 9:21 AM
