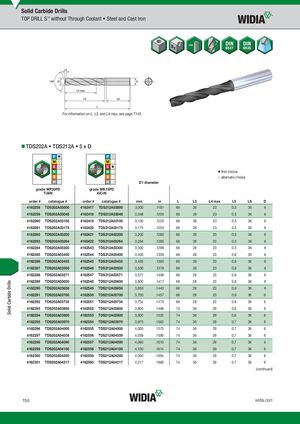

For information on L, L3, and L4 max, see page T143.
TDS202A • TDS212A • 5 x D
| �firs | it choice | ||||||||
| �alte | rnate cho | ice | |||||||
| D1 dia | meter | ||||||||
| WP20PD grade WP20PD TiAlN | WK15PD grade WK15PD AlCrN | ||||||||
| order # catalogue # | order # catalogue # | mm | in | L | L3 | L4 max | L5 | LS | D |
| 4162258 TDS202A03000 | 4162417 TDS212A03000 | 3,000 | .1181 | 66 | 28 | 23 | 0,5 | 36 | 6 |
| 4162259 TDS202A03048 | 4162418 TDS212A03048 | 3,048 | .1200 | 66 | 28 | 23 | 0,5 | 36 | 6 |
| 4162260 TDS202A03100 | 4162419 TDS212A03100 | 3,100 | .1220 | 66 | 28 | 23 | 0,5 | 36 | 6 |
| 4162261 TDS202A03175 | 4162420 TDS212A03175 | 3,175 | .1250 | 66 | 28 | 23 | 0,5 | 36 | 6 |
| 4162262 TDS202A03200 | 4162421 TDS212A03200 | 3,200 | .1260 | 66 | 28 | 23 | 0,5 | 36 | 6 |
| 4162283 TDS202A03264 | 4162422 TDS212A03264 | 3,264 | .1285 | 66 | 28 | 23 | 0,5 | 36 | 6 |
| 4162284 TDS202A03300 | 4162543 TDS212A03300 | 3,300 | .1299 | 66 | 28 | 23 | 0,5 | 36 | 6 |
| 4162285 TDS202A03400 | 4162544 TDS212A03400 | 3,400 | .1339 | 66 | 28 | 23 | 0,6 | 36 | 6 |
| 4162286 TDS202A03455 | 4162545 TDS212A03455 | 3,455 | .1360 | 66 | 28 | 23 | 0,6 | 36 | 6 |
| 4162287 TDS202A03500 | 4162546 TDS212A03500 | 3,500 | .1378 | 66 | 28 | 23 | 0,6 | 36 | 6 |
| 4162288 TDS202A03571 | 4162547 TDS212A03571 | 3,571 | .1406 | 66 | 28 | 23 | 0,6 | 36 | 6 |
| 4162289 TDS202A03600 | 4162548 TDS212A03600 | 3,600 | .1417 | 66 | 28 | 23 | 0,6 | 36 | 6 |
| 4162290 TDS202A03658 | 4162549 TDS212A03658 | 3,658 | .1440 | 66 | 28 | 23 | 0,6 | 36 | 6 |
| 4162291 TDS202A03700 | 4162550 TDS212A03700 | 3,700 | .1457 | 66 | 28 | 23 | 0,6 | 36 | 6 |
| 4162292 TDS202A03734 | 4162551 TDS212A03734 | 3,734 | .1470 | 66 | 28 | 23 | 0,6 | 36 | 6 |
| 4162293 TDS202A03800 | 4162552 TDS212A03800 | 3,800 | .1496 | 74 | 36 | 29 | 0,6 | 36 | 6 |
| 4162294 TDS202A03900 | 4162553 TDS212A03900 | 3,900 | .1535 | 74 | 36 | 29 | 0,6 | 36 | 6 |
| 4162295 TDS202A03970 | 4162554 TDS212A03970 | 3,970 | .1563 | 74 | 36 | 29 | 0,7 | 36 | 6 |
| 4162296 TDS202A04000 | 4162555 TDS212A04000 | 4,000 | .1575 | 74 | 36 | 29 | 0,7 | 36 | 6 |
| 4162297 TDS202A04039 | 4162556 TDS212A04039 | 4,039 | .1590 | 74 | 36 | 29 | 0,7 | 36 | 6 |
| 4162298 TDS202A04090 | 4162557 TDS212A04090 | 4,090 | .1610 | 74 | 36 | 29 | 0,7 | 36 | 6 |
| 4162299 TDS202A04100 | 4162558 TDS212A04100 | 4,100 | .1614 | 74 | 36 | 29 | 0,7 | 36 | 6 |
| 4162300 TDS202A04200 | 4162559 TDS212A04200 | 4,200 | .1654 | 74 | 36 | 29 | 0,7 | 36 | 6 |
| 4162301 TDS202A04217 | 4162560 TDS212A04217 | 4,217 | .1660 | 74 | 36 | 29 | 0,7 | 36 | 6 |
