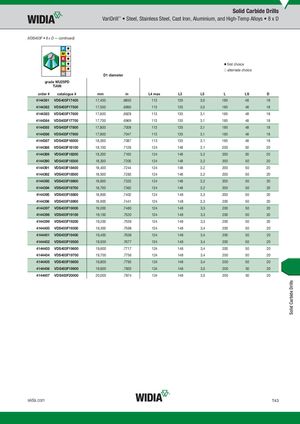

(VDS403F • 8 x D — continued)
| �first c | i hoice | |||||||
| D1 dia | meter | �altern | ate choice | |||||
| WU25PD grade WU25PD TiAlN | ||||||||
| order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D |
| 4144361 VDS403F17400 | 17,400 | .6850 | 113 | 135 | 3,0 | 185 | 48 | 18 |
| 4144362 VDS403F17500 | 17,500 | .6890 | 113 | 135 | 3,0 | 185 | 48 | 18 |
| 4144383 VDS403F17600 | 17,600 | .6929 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4144384 VDS403F17700 | 17,700 | .6969 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4144385 VDS403F17800 | 17,800 | .7008 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4144386 VDS403F17900 | 17,900 | .7047 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4144387 VDS403F18000 | 18,000 | .7087 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4144388 VDS403F18100 | 18,100 | .7126 | 124 | 148 | 3,1 | 200 | 50 | 20 |
| 4144389 VDS403F18200 | 18,200 | .7165 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144390 VDS403F18300 | 18,300 | .7205 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144391 VDS403F18400 | 18,400 | .7244 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144392 VDS403F18500 | 18,500 | .7283 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144393 VDS403F18600 | 18,600 | .7323 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144394 VDS403F18700 | 18,700 | .7362 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144395 VDS403F18800 | 18,800 | .7402 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144396 VDS403F18900 | 18,900 | .7441 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144397 VDS403F19000 | 19,000 | .7480 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144398 VDS403F19100 | 19,100 | .7520 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144399 VDS403F19200 | 19,200 | .7559 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144400 VDS403F19300 | 19,300 | .7598 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144401 VDS403F19400 | 19,400 | .7638 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144402 VDS403F19500 | 19,500 | .7677 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144403 VDS403F19600 | 19,600 | .7717 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144404 VDS403F19700 | 19,700 | .7756 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144405 VDS403F19800 | 19,800 | .7795 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144406 VDS403F19900 | 19,900 | .7835 | 124 | 148 | 3,5 | 200 | 50 | 20 |
| 4144407 VDS403F20000 | 20,000 | .7874 | 124 | 148 | 3,5 | 200 | 50 | 20 |
