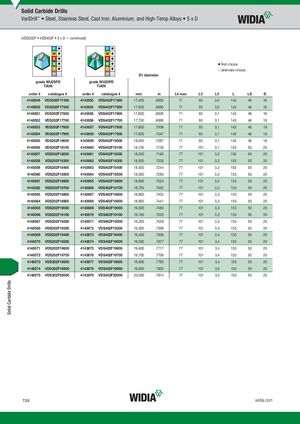

(VDS202F • VDS402F • 5 x D — continued)
| �firs | it choice | ||||||||
| D1 dia | meter | �alt | ernate cho | ice | |||||
| VDS202F • WU25PD grade WU25PD TiAlN | VDS402F • WU25PD grade WU25PD TiAlN | ||||||||
| order # catalogue # | order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D |
| 4148549 VDS202F17400 | 4143653 VDS402F17400 | 17,400 | .6850 | 71 | 93 | 3,0 | 143 | 48 | 18 |
| 4148550 VDS202F17500 | 4143654 VDS402F17500 | 17,500 | .6890 | 71 | 93 | 3,0 | 143 | 48 | 18 |
| 4148551 VDS202F17600 | 4143655 VDS402F17600 | 17,600 | .6929 | 71 | 93 | 3,1 | 143 | 48 | 18 |
| 4148552 VDS202F17700 | 4143656 VDS402F17700 | 17,700 | .6969 | 71 | 93 | 3,1 | 143 | 48 | 18 |
| 4148553 VDS202F17800 | 4143657 VDS402F17800 | 17,800 | .7008 | 71 | 93 | 3,1 | 143 | 48 | 18 |
| 4148554 VDS202F17900 | 4143658 VDS402F17900 | 17,900 | .7047 | 71 | 93 | 3,1 | 143 | 48 | 18 |
| 4148555 VDS202F18000 | 4143659 VDS402F18000 | 18,000 | .7087 | 71 | 93 | 3,1 | 143 | 48 | 18 |
| 4148556 VDS202F18100 | 4143660 VDS402F18100 | 18,100 | .7126 | 77 | 101 | 3,1 | 153 | 50 | 20 |
| 4148557 VDS202F18200 | 4143661 VDS402F18200 | 18,200 | .7165 | 77 | 101 | 3,2 | 153 | 50 | 20 |
| 4148558 VDS202F18300 | 4143662 VDS402F18300 | 18,300 | .7205 | 77 | 101 | 3,2 | 153 | 50 | 20 |
| 4148559 VDS202F18400 | 4143663 VDS402F18400 | 18,400 | .7244 | 77 | 101 | 3,2 | 153 | 50 | 20 |
| 4148560 VDS202F18500 | 4143664 VDS402F18500 | 18,500 | .7283 | 77 | 101 | 3,2 | 153 | 50 | 20 |
| 4148561 VDS202F18600 | 4143665 VDS402F18600 | 18,600 | .7323 | 77 | 101 | 3,2 | 153 | 50 | 20 |
| 4148562 VDS202F18700 | 4143666 VDS402F18700 | 18,700 | .7362 | 77 | 101 | 3,2 | 153 | 50 | 20 |
| 4148563 VDS202F18800 | 4143667 VDS402F18800 | 18,800 | .7402 | 77 | 101 | 3,3 | 153 | 50 | 20 |
| 4148564 VDS202F18900 | 4143668 VDS402F18900 | 18,900 | .7441 | 77 | 101 | 3,3 | 153 | 50 | 20 |
| 4148565 VDS202F19000 | 4143669 VDS402F19000 | 19,000 | .7480 | 77 | 101 | 3,3 | 153 | 50 | 20 |
| 4148566 VDS202F19100 | 4143670 VDS402F19100 | 19,100 | .7520 | 77 | 101 | 3,3 | 153 | 50 | 20 |
| 4148567 VDS202F19200 | 4143671 VDS402F19200 | 19,200 | .7559 | 77 | 101 | 3,3 | 153 | 50 | 20 |
| 4148568 VDS202F19300 | 4143672 VDS402F19300 | 19,300 | .7598 | 77 | 101 | 3,4 | 153 | 50 | 20 |
| 4148569 VDS202F19400 | 4143673 VDS402F19400 | 19,400 | .7638 | 77 | 101 | 3,4 | 153 | 50 | 20 |
| 4148570 VDS202F19500 | 4143674 VDS402F19500 | 19,500 | .7677 | 77 | 101 | 3,4 | 153 | 50 | 20 |
| 4148571 VDS202F19600 | 4143675 VDS402F19600 | 19,600 | .7717 | 77 | 101 | 3,4 | 153 | 50 | 20 |
| 4148572 VDS202F19700 | 4143676 VDS402F19700 | 19,700 | .7756 | 77 | 101 | 3,4 | 153 | 50 | 20 |
| 4148573 VDS202F19800 | 4143677 VDS402F19800 | 19,800 | .7795 | 77 | 101 | 3,4 | 153 | 50 | 20 |
| 4148574 VDS202F19900 | 4143678 VDS402F19900 | 19,900 | .7835 | 77 | 101 | 3,5 | 153 | 50 | 20 |
| 4148575 VDS202F20000 | 4143679 VDS402F20000 | 20,000 | .7874 | 77 | 101 | 3,5 | 153 | 50 | 20 |
