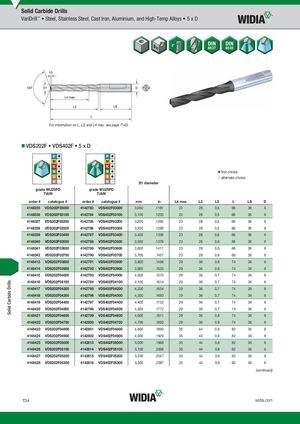

For information on L, L3, and L4 max, see page T143.
VDS202F • VDS402F • 5 x D
first choice
| �firs | it choice | ||||||||
| D1 dia | meter | �alt | ernate cho | ice | |||||
| VDS202F • WU25PD grade WU25PD TiAlN | VDS402F • WU25PD grade WU25PD TiAlN | ||||||||
| order # catalogue # | order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D |
| 4148335 VDS202F03000 | 4142783 VDS402F03000 | 3,000 | .1181 | 23 | 28 | 0,5 | 66 | 36 | 6 |
| 4148336 VDS202F03100 | 4142784 VDS402F03100 | 3,100 | .1220 | 23 | 28 | 0,5 | 66 | 36 | 6 |
| 4148337 VDS202F03200 | 4142785 VDS402F03200 | 3,200 | .1260 | 23 | 28 | 0,5 | 66 | 36 | 6 |
| 4148338 VDS202F03300 | 4142786 VDS402F03300 | 3,300 | .1299 | 23 | 28 | 0,5 | 66 | 36 | 6 |
| 4148339 VDS202F03400 | 4142787 VDS402F03400 | 3,400 | .1339 | 23 | 28 | 0,6 | 66 | 36 | 6 |
| 4148340 VDS202F03500 | 4142788 VDS402F03500 | 3,500 | .1378 | 23 | 28 | 0,6 | 66 | 36 | 6 |
| 4148341 VDS202F03600 | 4142789 VDS402F03600 | 3,600 | .1417 | 23 | 28 | 0,6 | 66 | 36 | 6 |
| 4148342 VDS202F03700 | 4142790 VDS402F03700 | 3,700 | .1457 | 23 | 28 | 0,6 | 66 | 36 | 6 |
| 4148413 VDS202F03800 | 4142791 VDS402F03800 | 3,800 | .1496 | 29 | 36 | 0,6 | 74 | 36 | 6 |
| 4148414 VDS202F03900 | 4142792 VDS402F03900 | 3,900 | .1535 | 29 | 36 | 0,6 | 74 | 36 | 6 |
| 4148415 VDS202F04000 | 4142793 VDS402F04000 | 4,000 | .1575 | 29 | 36 | 0,7 | 74 | 36 | 6 |
| 4148416 VDS202F04100 | 4142794 VDS402F04100 | 4,100 | .1614 | 29 | 36 | 0,7 | 74 | 36 | 6 |
| 4148417 VDS202F04200 | 4142795 VDS402F04200 | 4,200 | .1654 | 29 | 36 | 0,7 | 74 | 36 | 6 |
| 4148418 VDS202F04300 | 4142796 VDS402F04300 | 4,300 | .1693 | 29 | 36 | 0,7 | 74 | 36 | 6 |
| 4148419 VDS202F04400 | 4142797 VDS402F04400 | 4,400 | .1732 | 29 | 36 | 0,7 | 74 | 36 | 6 |
| 4148420 VDS202F04500 | 4142798 VDS402F04500 | 4,500 | .1772 | 29 | 36 | 0,7 | 74 | 36 | 6 |
| 4148421 VDS202F04600 | 4142799 VDS402F04600 | 4,600 | .1811 | 29 | 36 | 0,8 | 74 | 36 | 6 |
| 4148422 VDS202F04700 | 4142800 VDS402F04700 | 4,700 | .1850 | 29 | 36 | 0,8 | 74 | 36 | 6 |
| 4148423 VDS202F04800 | 4142801 VDS402F04800 | 4,800 | .1890 | 35 | 44 | 0,8 | 82 | 36 | 6 |
| 4148424 VDS202F04900 | 4142802 VDS402F04900 | 4,900 | .1929 | 35 | 44 | 0,8 | 82 | 36 | 6 |
| 4148425 VDS202F05000 | 4142813 VDS402F05000 | 5,000 | .1969 | 35 | 44 | 0,8 | 82 | 36 | 6 |
| 4148426 VDS202F05100 | 4142814 VDS402F05100 | 5,100 | .2008 | 35 | 44 | 0,8 | 82 | 36 | 6 |
| 4148427 VDS202F05200 | 4142815 VDS402F05200 | 5,200 | .2047 | 35 | 44 | 0,9 | 82 | 36 | 6 |
| 4148428 VDS202F05300 | 4142816 VDS402F05300 | 5,300 | .2087 | 35 | 44 | 0,9 | 82 | 36 | 6 |
