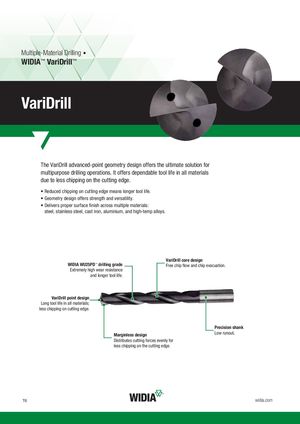

Multiple-Material Drilling •
WIDIA™ VariDrill™
VariDrill
The VariDrill advanced-point geometry design offers the ultimate solution for
multipurpose drilling operations. It offers dependable tool life in all materials
due to less chipping on the cutting edge.
• Reduced chipping on cutting edge means longer tool life.
• Geometry design offers strength and versatility.
• Delivers proper surface finish across multiple materials:
steel, stainless steel, cast iron, aluminium, and high-temp alloys.
VariDrill core design
WIDIA WU25PD™ drilling grade Free chip flow and chip evacuation.
Extremely high wear resistance
and longer tool life.
VariDrill point design
Long tool life in all materials;
less chipping on cutting edge.
Precision shank
Marginless design Low runout.
Distributes cutting forces evenly for
less chipping on the cutting edge.
T6 widia.com
