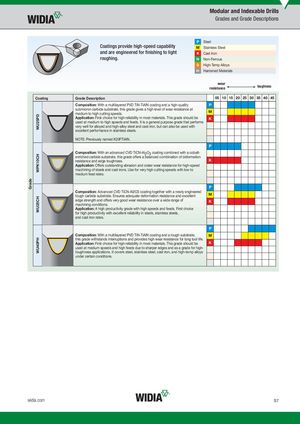

Modular and Indexable Drills
P Steel
Coatings provide high-speed capability
M Stainless Steel
and are engineered for fi nishing to light
K Cast Iron
roughing. N Non-Ferrous
S High-Temp Alloys H Hardened Materials
wear toughness resistance
| Coating Grade Description | 05 10 15 20 25 30 35 40 45 |
| Composition: With a multilayered PVD TiN-TiAlN coating and a high-quality | P |
| submicron carbide substrate, this grade gives a high level of wear resistance at | |
| M | |
| medium to high cutting speeds. | |
| Application: First choice for high reliability in most materials. This grade should be | K |
used at medium to high speeds and feeds. It is a general purpose grade that performs very well for alloyed and high-alloy steel and cast iron, but can also be used with excellent performance in stainless steels. NOTE: Previously named K20FTiAlN.
P
Composition: With an advanced CVD TiCN-Al2O3 coating combined with a cobaltenriched carbide substrate, this grade offers a balanced combination of deformation
resistance and edge toughness. K
Application: Offers outstanding abrasion and crater wear resistance for high-speed machining of steels and cast irons. Use for very high cutting speeds with low to medium feed rates.
P
Composition: Advanced CVD TiCN-Al2O3 coating together with a newly engineered
| tough carbide substrate. Ensures adequate deformation resistance and excellent | M |
| edge strength and offers very good wear resistance over a wide range of | K |
machining conditions. Application: A high productivity grade with high speeds and feeds. First choice for high productivity with excellent reliability in steels, stainless steels, and cast iron rates.
P
| Composition: With a multilayered PVD TiN-TiAlN coating and a tough substrate, | M |
| this grade withstands interruptions and provides high wear resistance for long tool life. | |
| Application: First choice for high reliability in most materials. This grade should be | K |
used at medium speeds and high feeds due to sharper edges and as a grade for high- toughness applications. It covers steel, stainless steel, cast iron, and high-temp alloys under certain conditions.
