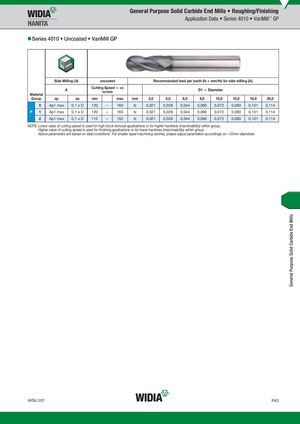

Application Data • Series 4010 • VariMill™ GP
Series 4010 • Uncoated • VariMill GP
| Side Mill | ing (A) | u | ncoate | d | Rec | ommended | feed per | tooth (fz = | mm/th) for | side millin | g (A). | |||
| Material | A | Cuttin | g Spee m/min | d — vc | D1 — D | iameter | ||||||||
| Group | ap | ae | min | max | mm | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |
| 0 | Ap1 max | 0,1 x D | 120 | – | 160 | fz | 0,021 | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 |
| P 1 | Ap1 max | 0,1 x D | 120 | – | 160 | fz | 0,021 | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 |
| 2 | Ap1 max | 0,1 x D | 112 | – | 152 | fz | 0,021 | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 |
2 Ap1 max 0,1 x D 112 – 152 fz 0,021 0,028 0,044 0,060 0,072 0,083 0,101 0,114
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
