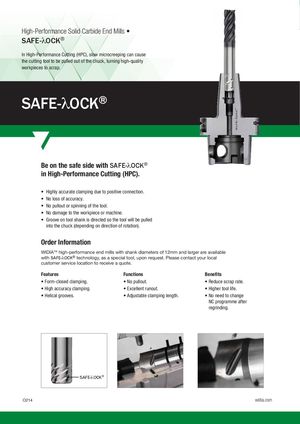

High-Performance Solid Carbide End Mills

SAFE-hOCK®

In High-Performance Cutting (HPC), slow microcreeping can cause the cutting tool to be pulled out of the chuck, turning high-quality workpieces to scrap.

SAFE-hOCK®

Be on the safe side with SAFE-hOCK®

in High-Performance Cutting (HPC).

• Highly accurate clamping due to positive connection.
• No loss of accuracy.
• No pullout or spinning of the tool.
• No damage to the workpiece or machine.
• Groove on tool shank is directed so the tool will be pulled into the chuck (depending on direction of rotation).

Order Information

WIDIA™ high-performance end mills with shank diameters of 12mm and larger are available with SAFE-hOCK® technology, as a special tool, upon request. Please contact your local customer service location to receive a quote.

Features Functions Benefi ts

• Form-closed clamping.
• No pullout.
• Reduce scrap rate.
• High accuracy clamping.
• Excellent runout.
• Higher tool life.
• Helical grooves.
• Adjustable clamping length.
• No need to change

NC programme after regrinding.

SAFE-hOCK®
