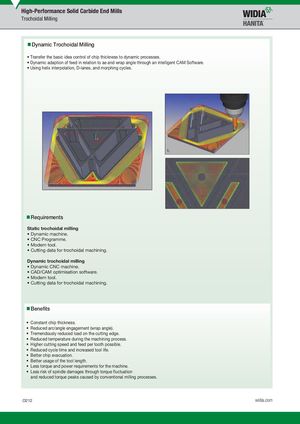

• Dynamic Trochoidal Milling
• Transfer the basic idea control of chip thickness to dynamic processes.
• Dynamic adaption of feed in relation to ae and wrap angle through an intelligent CAM Software.
• Using helix interpolation, D-lanes, and morphing cycles.

• Requirements Static trochoidal milling
• Dynamic machine.
• CNC Programme.
• Modern tool.
• Cutting data for trochoidal machining.

Dynamic trochoidal milling

• Dynamic CNC machine.
• CAD/CAM optimisation software.
• Modern tool.
• Cutting data for trochoidal machining.

• Benefi ts
• Constant chip thickness.
• Reduced arc/angle engagement (wrap angle).
• Tremendously reduced load on the cutting edge.
• Reduced temperature during the machining process.
• Higher cutting speed and feed per tooth possible.
• Reduced cycle time and increased tool life.
• Better chip evacuation.
• Better usage of the tool length.
• Less torque and power requirements for the machine.
• Less risk of spindle damages through torque fl uctuation and reduced torque peaks caused by conventional milling processes.
