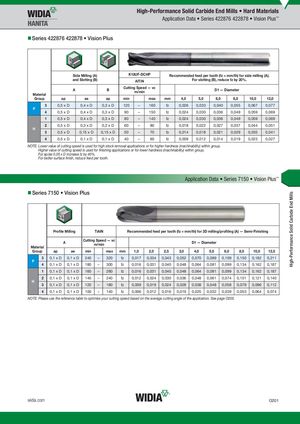

Application Data • Series 422876 422878 • Vision Plus™
- Series 422876 422878 • Vision Plus
| Si an | de Milling (A) d Slotting (B) | K1 | 0UF-DC AlTiN | HP | Re | commende | d feed per For slotting | tooth (fz = (B), reduc | mm/th) for e fz by 20% | side millin . | g (A). | ||
| Material | A | B | Cuttin | g Spee m/min | d — vc | D1 — D | iameter | ||||||
| Group | ap | ae | ap | min | max | mm | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | |
| 3 | 0,5 x D | 0,4 x D | 0,3 x D | 120 | – | 160 | fz | 0,026 | 0,033 | 0,040 | 0,055 | 0,067 | 0,077 |
| P 4 | 0,5 x D | 0,4 x D | 0,3 x D | 90 | – | 150 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,059 | 0,069 |
| 1 | 0,5 x D | 0,4 x D | 0,3 x D | 80 | – | 140 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,059 | 0,069 |
| H 2 | 0,5 x D | 0,3 x D | 0,2 x D | 60 | – | 80 | fz | 0,018 | 0,022 | 0,027 | 0,037 | 0,044 | 0,051 |
| 3 | 0,5 x D | 0,15 x D | 0,15 x D | 50 | – | 70 | fz | 0,014 | 0,018 | 0,021 | 0,029 | 0,035 | 0,041 |
| 4 | 0,5 x D | 0,1 x D | 0,1 x D | 40 | – | 60 | fz | 0,009 | 0,012 | 0,014 | 0,019 | 0,023 | 0,027 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for fi nishing applications or for lower hardness (machinability) within group. For ap/ae 0,05 x D increase fz by 40%. For better surface fi nish, reduce feed per tooth.
Application Data • Series 7150 • Vision Plus™
- Series 7150 • Vision Plus
Profi le Milling TiAlN Recommended feed per tooth (fz = mm/th) for 3D milling/profi ling (A) — Semi-Finishing
| Material | Profi le A | i Milling | Cuttin | TiAlN g Spe m/mi | ed — vc n | i | Recomme i | nded fee i | d per toot i | h (fz = m i | m/th) for 3 i D1 — D | D millingi iameter | /profi ling | i (A) — Se | i mi-Finishi | i ng |
| Group | ap | ae | min | max | mm | 1,0 | 2,0 | 2,5 | 3,0 | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | |
| P 3 | 0,1 x D | 0,1 x D | 240 | – | 320 | fz | 0,017 | 0,034 | 0,043 | 0,052 | 0,070 | 0,089 | 0,109 | 0,150 | 0,182 | 0,211 |
| 4 | 0,1 x D | 0,1 x D | 180 | – | 300 | fz | 0,016 | 0,031 | 0,040 | 0,048 | 0,064 | 0,081 | 0,099 | 0,134 | 0,162 | 0,187 |
| 1 | 0,1 x D | 0,1 x D | 160 | – | 280 | fz | 0,016 | 0,031 | 0,040 | 0,048 | 0,064 | 0,081 | 0,099 | 0,134 | 0,162 | 0,187 |
| H 2 | 0,1 x D | 0,1 x D | 140 | – | 240 | fz | 0,012 | 0,024 | 0,030 | 0,036 | 0,048 | 0,061 | 0,074 | 0,101 | 0,121 | 0,140 |
| 3 | 0,1 x D | 0,1 x D | 120 | – | 180 | fz | 0,009 | 0,019 | 0,024 | 0,028 | 0,038 | 0,048 | 0,058 | 0,079 | 0,096 | 0,112 |
| 4 | 0,1 x D | 0,1 x D | 100 | – | 140 | fz | 0,006 | 0,012 | 0,016 | 0,019 | 0,025 | 0,032 | 0,039 | 0,053 | 0,064 | 0,074 |
