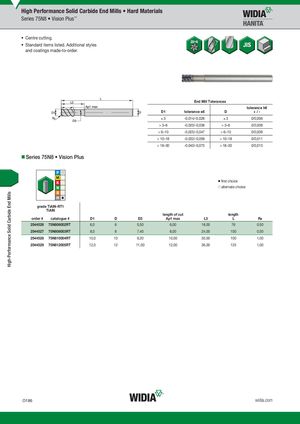

High Performance Solid Carbide End Mills Hard Materials
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
| D1 | tolerance e8 | D | tolerance h6 + / - |
| �3 | -0,014/-0,028 | �3 | 0/0,006 |
| > 3–6 | -0,020/-0,038 | > 3–6 | 0/0,008 |
| > 6–10 | -0,025/-0,047 | > 6–10 | 0/0,009 |
| > 10–18 | -0,032/-0,059 | > 10–18 | 0/0,011 |
| > 18–30 | -0,040/-0,073 | > 18–30 | 0/0,013 |
Series 75N8 Vision Plus
first choice alternate choice
grade TiAlN-RT1TiAlN - RT1
| TiAlN - RT1 grade TiAlN-RT1 TiAlN order # catalogue # | D1 | D | D3 | length of cut Ap1 max | L3 | length L | R � |
| 2544526 75N806002RT | 6,0 | 6 | 5,50 | 6,00 | 18,00 | 76 | 0,50 |
| 2544527 75N808003RT | 8,0 | 8 | 7,40 | 8,00 | 24,00 | 100 | 0,50 |
| 2544528 75N810004RT | 10,0 | 10 | 9,20 | 10,00 | 30,00 | 100 | 1,00 |
| 2544529 75N812005RT | 12,0 | 12 | 11,00 | 12,00 | 36,00 | 125 | 1,00 |
