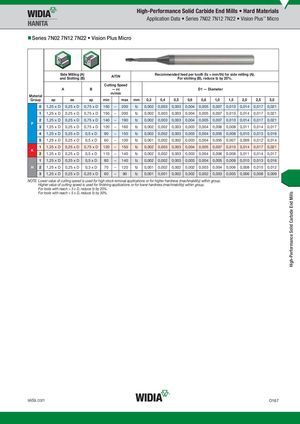

Application Data • Series 7N02 7N12 7N22 • Vision Plus™ Micro
Series 7N02 7N12 7N22 • Vision Plus Micro
| S an | ide Milling ( d Slotting ( | A) B) | AlTi | N | Recomm | ended fe For | ed per t slotting | ooth (fz = (B), redu | mm/th) ce fz by | for side 20%. | milling ( | A). | |||||
| Mtil | A | B | Cutti m | ng S — v /mi | peed c n | D1 — D | iameter | ||||||||||
| aera Group | ap | ae | ap | min | max | mm | 0,3 | 0,4 | 0,5 | 0,6 | 0,8 | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | |
| 0 | 1,25 x D | 0,25 x D | 0,75 x D | 150 | – | 200 | fz | 0,002 | 0,003 | 0,003 | 0,004 | 0,005 | 0,007 | 0,010 | 0,014 | 0,017 | 0,021 |
| 1 | 1,25 x D | 0,25 x D | 0,75 x D | 150 | – | 200 | fz | 0,002 | 0,003 | 0,003 | 0,004 | 0,005 | 0,007 | 0,010 | 0,014 | 0,017 | 0,021 |
| P 2 | 1,25 x D | 0,25 x D | 0,75 x D | 140 | – | 190 | fz | 0,002 | 0,003 | 0,003 | 0,004 | 0,005 | 0,007 | 0,010 | 0,014 | 0,017 | 0,021 |
| 3 | 1,25 x D | 0,25 x D | 0,75 x D | 120 | – | 160 | fz | 0,002 | 0,002 | 0,003 | 0,003 | 0,004 | 0,006 | 0,008 | 0,011 | 0,014 | 0,017 |
| 4 | 1,25 x D | 0,25 x D | 0,5 x D | 90 | – | 150 | fz | 0,002 | 0,002 | 0,003 | 0,003 | 0,004 | 0,005 | 0,008 | 0,010 | 0,013 | 0,016 |
| 5 | 1,25 x D | 0,25 x D | 0,5 x D | 60 | – | 100 | fz | 0,001 | 0,002 | 0,002 | 0,003 | 0,004 | 0,005 | 0,007 | 0,009 | 0,012 | 0,014 |
| K 1 | 1,25 x D | 0,25 x D | 0,75 x D | 120 | – | 150 | fz | 0,002 | 0,003 | 0,003 | 0,004 | 0,005 | 0,007 | 0,010 | 0,014 | 0,017 | 0,021 |
| 2 | 1,25 x D | 0,25 x D | 0,5 x D | 110 | – | 140 | fz | 0,002 | 0,002 | 0,003 | 0,003 | 0,004 | 0,006 | 0,008 | 0,011 | 0,014 | 0,017 |
| 1 | 1,25 x D | 0,25 x D | 0,5 x D | 80 | – | 140 | fz | 0,002 | 0,002 | 0,003 | 0,003 | 0,004 | 0,005 | 0,008 | 0,010 | 0,013 | 0,016 |
| H 2 | 1,25 x D | 0,25 x D | 0,3 x D | 70 | – | 120 | fz | 0,001 | 0,002 | 0,002 | 0,002 | 0,003 | 0,004 | 0,006 | 0,008 | 0,010 | 0,012 |
| 3 | 1,25 x D | 0,25 x D | 0,25 x D | 60 | – | 90 | fz | 0,001 | 0,001 | 0,002 | 0,002 | 0,002 | 0,003 | 0,005 | 0,006 | 0,008 | 0,009 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. For tools with reach > 3 x D, reduce fz by 20%. For tools with reach > 5 x D, reduce fz by 30%.
