Application Data • Series 49G9

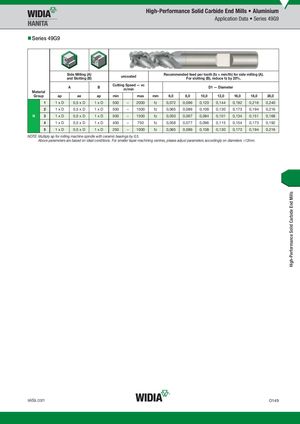

Series 49G9
| Material | S a | ide Milling (A nd Slotting (B A | ) ) B | u Cuttin | ncoat g Spe m/mi | ed ed — vc n | Recomm | ended fee For sl | d per tooth otting (B), D1 | (fz = mm/ reduce fz — Diame | th) for sid by 20%. ter | e milling (A | ). | |
| Group | ap | ae | ap | min | max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 18,0 | 20,0 | |
| 1 | 1 x D | 0,5 x D | 1 x D | 500 | – | 2000 | fz | 0,072 | 0,096 | 0,120 | 0,144 | 0,192 | 0,216 | 0,240 |
| 2 | 1 x D | 0,5 x D | 1 x D | 500 | – | 1500 | fz | 0,065 | 0,086 | 0,108 | 0,130 | 0,173 | 0,194 | 0,216 |
| N 3 | 1 x D | 0,5 x D | 1 x D | 500 | – | 1500 | fz | 0,050 | 0,067 | 0,084 | 0,101 | 0,134 | 0,151 | 0,168 |
| 4 | 1 x D | 0,5 x D | 1 x D | 400 | – | 750 | fz | 0,058 | 0,077 | 0,096 | 0,115 | 0,154 | 0,173 | 0,192 |
| 5 | 1 x D | 0,5 x D | 1 x D | 250 | – | 1000 | fz | 0,065 | 0,086 | 0,108 | 0,130 | 0,173 | 0,194 | 0,216 |
5 1 x D 0,5 x D 1 x D 250 – 1000 fz 0,065 0,086 0,108 0,130 0,173 0,194 0,216
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
