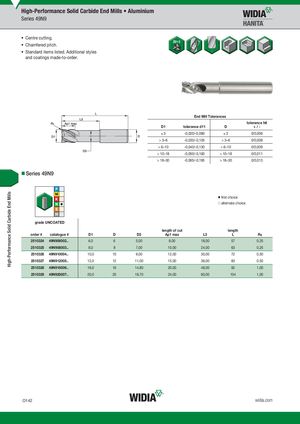

- Centre cutting.
- Chamfered pitch.
- Standard items listed. Additional styles and coatings made-to-order.
End Mill Tolerances
| D1 | tolerance d11 | D | tolerance h6 + / - |
| �3 | -0,020/-0,080 | �3 | 0/0,006 |
| > 3–6 | -0,030/-0,105 | > 3–6 | 0/0,008 |
| > 6–10 | -0,040/-0,130 | > 6–10 | 0/0,009 |
| > 10–18 | -0,050/-0,160 | > 10–18 | 0/0,011 |
| > 18–30 | -0,065/-0,195 | > 18–30 | 0/0,013 |
Series 49N9
first choice alternate choice
grade UNCOATEDUNCOATED
| UNCOATED grade UNCOATED | |||||||
| order # catalogue # | D1 | D | D3 | length of cut Ap1 max | L3 | length L | R � |
| 2510324 49N906002.. | 6,0 | 6 | 5,00 | 8,00 | 18,00 | 57 | 0,25 |
| 2510325 49N908003.. | 8,0 | 8 | 7,00 | 10,00 | 24,00 | 63 | 0,25 |
| 2510326 49N910004.. | 10,0 | 10 | 9,00 | 12,00 | 30,00 | 72 | 0,50 |
| 2510327 49N912005.. | 12,0 | 12 | 11,00 | 15,00 | 36,00 | 83 | 0,50 |
| 2510328 49N916006.. | 16,0 | 16 | 14,80 | 20,00 | 48,00 | 92 | 1,00 |
| 2510329 49N920007.. | 20,0 | 20 | 18,70 | 24,00 | 60,00 | 104 | 1,00 |
