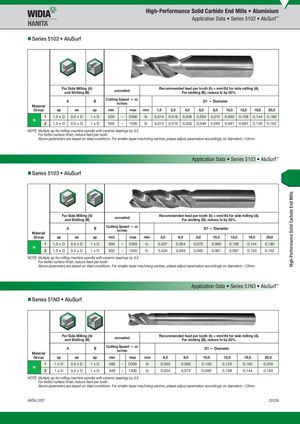

Application Data • Series 5102 • AluSurf ™
- Series 5102 • AluSurf
| For an | Side Milling d Slotting ( | (A) B) | un | coat | ed | Rec | ommend | ed feed p For slot | er tooth ting (B), r | (fz = mm educe fz | /th) for s by 20%. | ide millin | g (A). | |||
| Material | A | B | Cutting | Spe m/mi | ed — vc n | D1 | — Diame | ter | ||||||||
| Group | ap | ae | ap | min | max | mm | 1,5 | 2,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |
| N 1 | 1,5 x D | 0,5 x D | 1 x D | 500 | – | 2000 | fz | 0,014 | 0,018 | 0,036 | 0,054 | 0,072 | 0,090 | 0,108 | 0,144 | 0,180 |
| 2 | 1,5 x D | 0,5 x D | 1 x D | 500 | – | 1500 | fz | 0,012 | 0,016 | 0,032 | 0,049 | 0,065 | 0,081 | 0,097 | 0,130 | 0,162 |
2 1,5 x D 0,5 x D 1 x D 500 – 1500 fz 0,012 0,016 0,032 0,049 0,065 0,081 0,097 0,130 0,162
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5. For better surface fi nish, reduce feed per tooth. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
Application Data • Series 5103 • AluSurf ™
- Series 5103 • AluSurf
For Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling (A). uncoated and Slotting (B) For slotting (B), reduce fz by 20%. Cutting Speed — vc
| A | B | D1 — Diameter | ||
| m/min | ||||
| Material |
| Group | ap | ae | ap | min | max | mm | 3,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| 1 | 1,5 x D | 0,5 x D | 1 x D | 500 | – | 2000 | fz | 0,027 | 0,054 | 0,072 | 0,090 | 0,108 | 0,144 | 0,180 | |
| N | |||||||||||||||
| 2 | 1,5 x D | 0,5 x D | 1 x D | 500 | – | 1500 | fz | 0,024 | 0,049 | 0,065 | 0,081 | 0,097 | 0,130 | 0,162 |
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5. For better surface fi nish, reduce feed per tooth. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
Application Data • Series 51N3 • AluSurf™
- Series 51N3 • AluSurf
For Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling (A). uncoated and Slotting (B) For slotting (B), reduce fz by 20%. Cutting Speed — vc
A B D1 — Diameter
m/min
| Fo a | r Side Milling nd Slotting ( | (A) B) | unc | oa | ted | Recomme | nded feed pe For slotti | r tooth (fz = ng (B), reduc | mm/th) for si e fz by 20%. | de milling (A | ). | ||
| Material | A | B | Cutting m | Sp /m | eed — vc in | D1 — D | iameter | ||||||
| Group | ap | ae | ap | min | max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |
| N 1 | 1 x D | 0,5 x D | 1 x D | 500 | – | 2000 | fz | 0,060 | 0,080 | 0,100 | 0,120 | 0,160 | 0,200 |
| 2 | 1 x D | 0,5 x D | 1 x D | 500 | – | 1500 | fz | 0,054 | 0,072 | 0,090 | 0,108 | 0,144 | 0,180 |
