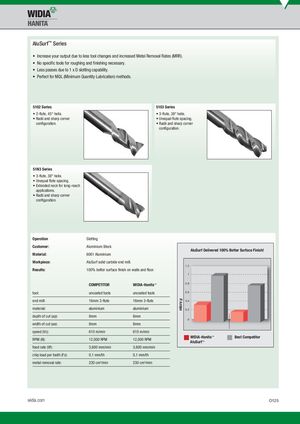

AluSurf™ Series

  • Increase your output due to less tool changes and increased Metal Removal Rates (MRR).
  • No specifi c tools for roughing and fi nishing necessary.
  • Less passes due to 1 x D slotting capability.
  • Perfect for MQL (Minimum Quantity Lubrication) methods.

5102 Series 5103 Series

  • 2-fl ute, 45° helix.
  • 3-fl ute, 38° helix.
  • Radii and sharp corner
  • Unequal fl ute spacing.

confi guration. Radii and sharp corner

confi guration.

51N3 Series

  • 3-fl ute, 38° helix.
  • Unequal fl ute spacing.
  • Extended neck for long-reach applications.
  • Radii and sharp corner confi guration.
OperationSlotting
Customer:Aluminium Block
Material:6061 Aluminium
Workpiece:AluSurf solid carbide end mill.
Results:100% better surface fi nish on walls and fl oor.
COMPETITORWIDIA-Hanita™
tool:uncoated toolsuncoated tools
end mill:16mm 3-fl ute16mm 3-fl ute
material:aluminiumaluminium
depth of cut (ap):8mm8mm
width of cut (ae):8mm8mm
speed (Vc):610 m/min610 m/min
RPM (N):12,000 RPM12,000 RPM
feed rate (Vf):3,600 mm/min3,600 mm/min
chip load per tooth (Fz):0,1 mm/th0,1 mm/th
metal removal rate:230 cm3/min230 cm3/min

AluSurf Delivered 100% Better Surface Finish!

1.2 1 0.8 0.6 0.4 0.2

0

WIDIA-Hanita™ Best Competitor AluSurf™
