- Non-centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
| End Mill Tol | erances | ||
| D1 | tolerance h10 + / - | D | tolerance h6 + / - |
| �3 | 0/-0,040 | �3 | 0/-0,006 |
| > 3–6 | 0/-0,048 | > 3–6 | 0/-0,008 |
| > 6–10 | 0/-0,058 | > 6–10 | 0/-0,009 |
| > 10–18 | 0/-0,070 | > 10–18 | 0/-0,011 |
| > 18–30 | 0/-0,084 | > 18–30 | 0/-0,013 |

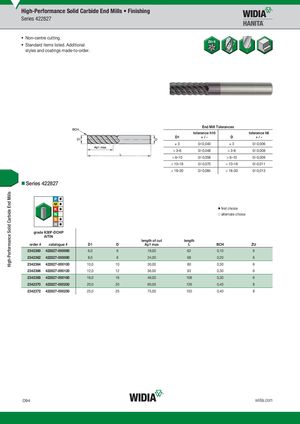

Series 422827
first choice alternate choice
grade K30F-DCHPK30F - DCHP AlTiN
| K30F - DCHP grade K30F-DCHP AlTiN order # catalogue # | D1 | D | length of cut Ap1 max | length L | BCH | ZU |
| 2342360 422827-000060 | 6,0 | 6 | 18,00 | 62 | 0,10 | 6 |
| 2342362 422827-000080 | 8,0 | 8 | 24,00 | 68 | 0,20 | 6 |
| 2342364 422827-000100 | 10,0 | 10 | 30,00 | 80 | 0,30 | 6 |
| 2342366 422827-000120 | 12,0 | 12 | 36,00 | 93 | 0,30 | 6 |
| 2342368 422827-000160 | 16,0 | 16 | 48,00 | 108 | 0,30 | 6 |
| 2342370 422827-000200 | 20,0 | 20 | 60,00 | 126 | 0,40 | 8 |
| 2342372 422827-000250 | 25,0 | 25 | 75,00 | 150 | 0,40 | 8 |
