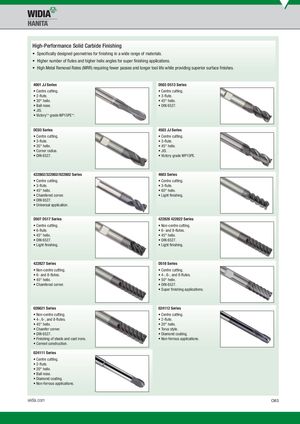

Общий каталог Widia 2017 - страница 1143

High-Performance Solid Carbide Finishing

• Specifi cally designed geometries for fi nishing in a wide range of materials.
• Higher number of fl utes and higher helix angles for super fi nishing applications.
• High Metal Removal Rates (MRR) requiring fewer passes and longer tool life while providing superior surface fi nishes.

4001 JJ Series D503 D513 Series

• Centre cutting.
• Centre cutting.
• 2-fl ute.
• 3-fl ute.
• 30° helix.
• 45° helix.
• Ball nose.
• DIN 6527.
• JIS.
• Victory™ grade WP15PE™.

DC03 Series 4503 JJ Series

• Centre cutting.
• Centre cutting.
• 3-fl ute.
• 3-fl ute.
• 35° helix.
• 45° helix.
• Corner radius.
• JIS.
• DIN 6527.
• Victory grade WP15PE.

422802/322802/022802 Series 4603 Series

• Centre cutting.
• Centre cutting.
• 3-fl ute.
• 3-fl ute.
• 45° helix.
• 60° helix.
• Chamfered corner.
• Light fi nishing.
• DIN 6527.
• Universal application.

D507 D517 Series 422826 422822 Series

• Centre cutting.
• Non-centre cutting.
• 6-fl ute.
• 6- and 8-fl utes.
• 45° helix.
• 45° helix.
• DIN 6527.
• DIN 6527.
• Light fi nishing.
• Light fi nishing.

422827 Series D518 Series

• Non-centre cutting.
• Centre cutting.
• 6- and 8-fl utes.
• 4-, 6-, and 8-fl utes.
• 45° helix.
• 50° helix.
• Chamfered corner.
• DIN 6527.
• Super fi nishing applications.

026621 Series 024112 Series

• Non-centre cutting.
• Centre cutting.
• 4-, 6-, and 8-fl utes.
• 2-fl ute.
• 45° helix.
• 20° helix.
• Chamfer corner.
• Torus style.
• DIN 6527.
• Diamond coating.
• Finishing of steels and cast irons.
• Non-ferrous applications.
• Cermet construction.

024111 Series

• Centre cutting.
• 2-fl ute.
• 20° helix.
• Ball nose.
• Diamond coating.
• Non-ferrous applications.
