Series 022818 422818

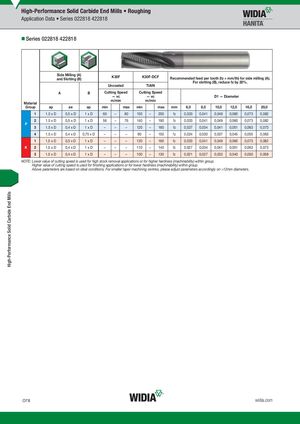

| Sid an | e Milling (A d Slotting (B | ) ) | U | K30 ncoa | F ted | K | 30F- TiAl | DCF N | Reco | mmended F | feed per or slotting | tooth (fz = (B), redu | mm/th) f ce fz by 2 | or side m 0%. | illing (A). | |
| Material | A | B | Cu | tting — v m/m | Speed c in | Cutt | ing S — v m/m | peed c in | D1 — D | iameter | ||||||
| Group | ap | ae | ap | min | max | min | max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| 1 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | 150 | – | 200 | fz | 0,033 | 0,041 | 0,049 | 0,060 | 0,073 | 0,082 |
| 2 | 1,5 x D | 0,5 x D | 1 x D | 56 | – | 76 | 140 | – | 190 | fz | 0,033 | 0,041 | 0,049 | 0,060 | 0,073 | 0,082 |
| P 3 | 1,5 x D | 0,4 x D | 1 x D | – | – | – | 120 | – | 160 | fz | 0,027 | 0,034 | 0,041 | 0,051 | 0,063 | 0,073 |
| 4 | 1,5 x D | 0,4 x D | 0,75 x D | – | – | – | 90 | – | 150 | fz | 0,024 | 0,030 | 0,037 | 0,045 | 0,055 | 0,063 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | – | – | – | 120 | – | 160 | fz | 0,033 | 0,041 | 0,049 | 0,060 | 0,073 | 0,082 |
| K 2 | 1,5 x D | 0,4 x D | 1 x D | – | – | – | 110 | – | 140 | fz | 0,027 | 0,034 | 0,041 | 0,051 | 0,063 | 0,073 |
| 3 | 1,5 x D | 0,4 x D | 1 x D | – | – | – | 100 | – | 130 | fz | 0,021 | 0,027 | 0,033 | 0,040 | 0,050 | 0,058 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
