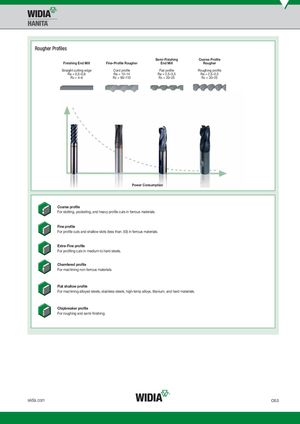

Rougher Profiles
Semi-Finishing Coarse Profile
| Finishing End Mill | Fine-Profile Rougher | End Mill | Rougher | |||
| Straight cutting edge | Cord profile | Flat profile | Roughing profile | |||
| Ra = 0,5–0,8 | Ra = 12–14 | Ra = 2,5–3,5 | Ra = 2,5–3,5 | |||
| Rz = 4–6 | Rz = 90–110 | Rz = 20–25 | Rz = 20–25 |
Power Consumption
Coarse profile For slotting, pocketing, and heavy profile cuts in ferrous materials.
Fine profile For profile cuts and shallow slots (less than .50) in ferrous materials.
Extra-Fine profile For profiling cuts in medium to hard steels.
Chamfered profile For machining non-ferrous materials.
Flat shallow profile For machining alloyed steels, stainless steels, high-temp alloys, titanium, and hard materials.
Chipbreaker profile For roughing and semi-finishing.
