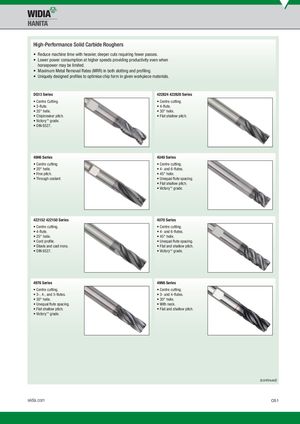

Общий каталог Widia 2017 - страница 1111

High-Performance Solid Carbide Roughers

• Reduce machine time with heavier, deeper cuts requiring fewer passes.
• Lower power consumption at higher speeds providing productivity even when horsepower may be limited.
• Maximum Metal Removal Rates (MRR) in both slotting and profi ling.
• Uniquely designed profi les to optimise chip form in given workpiece materials.

DQ13 Series 422824 422820 Series

• Centre Cutting.
• Centre cutting.
• 3-fl ute.
• 4-fl ute.
• 35° helix.
• 30° helix.
• Chipbreaker pitch.
• Flat shallow pitch.
• Victory™ grade.
• DIN 6527.

49H6 Series 4U40 Series

• Centre cutting.
• Centre cutting.
• 20° helix.
• 4- and 6-fl utes.
• Fine pitch.
• 45° helix.
• Through coolant.
• Unequal fl ute spacing.
• Flat shallow pitch.
• Victory™ grade.

422152 422150 Series 4U70 Series

• Centre cutting.
• Centre cutting.
• 4-fl ute.
• 4- and 6-fl utes.
• 25° helix.
• 45° helix.
• Cord profi le.
• Unequal fl ute spacing.
• Steels and cast irons.
• Flat and shallow pitch.
• DIN 6527.
• Victory™ grade.

4976 Series 49N6 Series

• Centre cutting.
• Centre cutting.
• 3-, 4-, and 5-fl utes.
• 3- and 4-fl utes.
• 30° helix.
• 30° helix.
• Unequal fl ute spacing.
• With neck.
• Flat shallow pitch.
• Flat and shallow pitch.
• Victory™ grade.

(continued)
