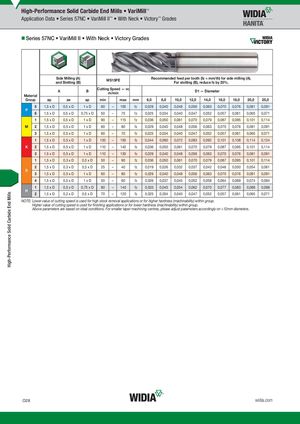

Application Data • Series 57NC • VariMill II™ • With Neck • Victory™ Grades
Series 57NC • VariMill II • With Neck • Victory Grades
| Si an | de Milling ( d Slotting ( | A) B) | W | S15 | PE | Rec | ommend | ed feed For slot | per tooth ting (B), | (fz = mm reduce fz | /th) for s by 20%. | ide millin | g (A). | |||
| Material | A | B | Cutting | Sp m/m | eed — vc in | D1 | — Diame | ter | ||||||||
| Group | ap | ae | ap | min | max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 14,0 | 16,0 | 18,0 | 20,0 | 25,0 | |
| P 5 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 100 | fz | 0,029 | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 | 0,091 |
| 6 | 1,5 x D | 0,5 x D | 0,75 x D | 50 | – | 75 | fz | 0,025 | 0,034 | 0,040 | 0,047 | 0,052 | 0,057 | 0,061 | 0,065 | 0,071 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 90 | – | 115 | fz | 0,036 | 0,050 | 0,061 | 0,070 | 0,079 | 0,087 | 0,095 | 0,101 | 0,114 |
| M 2 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,029 | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 | 0,091 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 70 | fz | 0,025 | 0,034 | 0,040 | 0,047 | 0,052 | 0,057 | 0,061 | 0,065 | 0,071 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 120 | – | 150 | fz | 0,044 | 0,060 | 0,072 | 0,083 | 0,092 | 0,101 | 0,108 | 0,114 | 0,124 |
| K 2 | 1,5 x D | 0,5 x D | 1 x D | 110 | – | 140 | fz | 0,036 | 0,050 | 0,061 | 0,070 | 0,079 | 0,087 | 0,095 | 0,101 | 0,114 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 110 | – | 130 | fz | 0,029 | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 | 0,091 |
| 1 | 1,5 x D | 0,3 x D | 0,3 x D | 50 | – | 90 | fz | 0,036 | 0,050 | 0,061 | 0,070 | 0,079 | 0,087 | 0,095 | 0,101 | 0,114 |
| 2 | 1,5 x D | 0,3 x D | 0,3 x D | 25 | – | 40 | fz | 0,019 | 0,026 | 0,032 | 0,037 | 0,042 | 0,046 | 0,050 | 0,054 | 0,061 |
| S 3 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,029 | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 | 0,091 |
| 4 | 1,5 x D | 0,5 x D | 1 x D | 50 | – | 60 | fz | 0,026 | 0,037 | 0,045 | 0,052 | 0,058 | 0,064 | 0,069 | 0,074 | 0,084 |
| H 1 | 1,5 x D | 0,5 x D | 0,75 x D | 80 | – | 140 | fz | 0,033 | 0,045 | 0,054 | 0,062 | 0,070 | 0,077 | 0,083 | 0,088 | 0,098 |
| 2 | 1,5 x D | 0,2 x D | 0,5 x D | 70 | – | 120 | fz | 0,025 | 0,034 | 0,040 | 0,047 | 0,052 | 0,057 | 0,061 | 0,065 | 0,071 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
