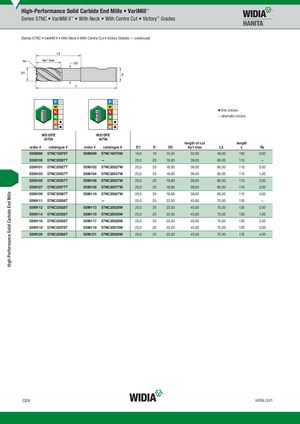

Series 57NC • VariMill II™ • With Neck • With Centre Cut • Victory™ Grades
(Series 57NC • VariMill II • With Neck • With Centre Cut • Victory Grades — continued)
| �first ch �alterna | i oice te choice | |||||||
| WS15PE W AlTiN order # catalogue # order # | S15PE AlTiN catalogue # | D1 | D | D3 | length of cut Ap1 max | L3 | length L | R � |
| 5599098 57NC16076T 5599099 | 57NC16076W | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 3,00 |
| 5599100 57NC20007T | — | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | — |
| 5599101 57NC20027T 5599102 | 57NC20027W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 0,50 |
| 5599103 57NC20037T 5599104 | 57NC20037W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 1,00 |
| 5599105 57NC20057T 5599106 | 57NC20057W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 2,00 |
| 5599107 57NC20077T 5599108 | 57NC20077W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 3,00 |
| 5599109 57NC20087T 5599110 | 57NC20087W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 4,00 |
| 5599111 57NC25008T | — | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | — |
| 5599112 57NC25028T 5599113 | 57NC25028W | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | 0,50 |
| 5599114 57NC25038T 5599115 | 57NC25038W | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | 1,00 |
| 5599116 57NC25058T 5599117 | 57NC25058W | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | 2,00 |
| 5599118 57NC25078T 5599119 | 57NC25078W | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | 3,00 |
| 5599120 57NC25088T 5599121 | 57NC25088W | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | 4,00 |
