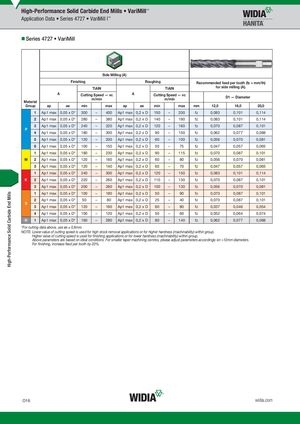

Series 4727 • VariMill
| Side Mil | ling (A) | |||||||||||||
| Finis | hing | Ro | ughing | Reco | mmended fe | ed per tooth (f | z = mm/th) | |||||||
| TiAlN | TiAlN | for sid | e milling (A). | |||||||||||
| Material | A | Cuttin | g Spe m/mi | ed — vc n | A | Cuttin | g Spee m/min | d — vc | D1 — Diamete | r | ||||
| Group | ap | ae | min | max | ap | ae | min | max | mm | 12,0 | 16,0 | 20,0 | ||
| 1 | Ap1 max | 0,05 x D | 300 | – | 400 | Ap1 max | 0,2 x D | 150 | – | 200 | fz | 0,083 | 0,101 | 0,114 |
| 2 | Ap1 max | 0,05 x D | 280 | – | 380 | Ap1 max | 0,2 x D | 140 | – | 190 | fz | 0,083 | 0,101 | 0,114 |
| P 3 | Ap1 max | 0,05 x D | 240 | – | 320 | Ap1 max | 0,2 x D | 120 | – | 160 | fz | 0,070 | 0,087 | 0,101 |
| 4 | Ap1 max | 0,05 x D | 180 | – | 300 | Ap1 max | 0,2 x D | 90 | – | 150 | fz | 0,062 | 0,077 | 0,088 |
| 5 | Ap1 max | 0,05 x D | 120 | – | 200 | Ap1 max | 0,2 x D | 60 | – | 100 | fz | 0,056 | 0,070 | 0,081 |
| 6 | Ap1 max | 0,05 x D | 100 | – | 150 | Ap1 max | 0,2 x D | 50 | – | 75 | fz | 0,047 | 0,057 | 0,065 |
| 1 | Ap1 max | 0,05 x D | 180 | – | 230 | Ap1 max | 0,2 x D | 90 | – | 115 | fz | 0,070 | 0,087 | 0,101 |
| M 2 | Ap1 max | 0,05 x D | 120 | – | 160 | Ap1 max | 0,2 x D | 60 | – | 80 | fz | 0,056 | 0,070 | 0,081 |
| 3 | Ap1 max | 0,05 x D | 120 | – | 140 | Ap1 max | 0,2 x D | 60 | – | 70 | fz | 0,047 | 0,057 | 0,065 |
| 1 | Ap1 max | 0,05 x D | 240 | – | 300 | Ap1 max | 0,2 x D | 120 | – | 150 | fz | 0,083 | 0,101 | 0,114 |
| K 2 | Ap1 max | 0,05 x D | 220 | – | 260 | Ap1 max | 0,2 x D | 110 | – | 130 | fz | 0,070 | 0,087 | 0,101 |
| 3 | Ap1 max | 0,05 x D | 200 | – | 260 | Ap1 max | 0,2 x D | 100 | – | 130 | fz | 0,056 | 0,070 | 0,081 |
| 1 | Ap1 max | 0,05 x D | 100 | – | 180 | Ap1 max | 0,2 x D | 50 | – | 90 | fz | 0,070 | 0,087 | 0,101 |
| S 2 | Ap1 max | 0,05 x D | 50 | – | 80 | Ap1 max | 0,2 x D | 25 | – | 40 | fz | 0,070 | 0,087 | 0,101 |
| 3 | Ap1 max | 0,05 x D | 120 | – | 160 | Ap1 max | 0,2 x D | 60 | – | 80 | fz | 0,037 | 0,046 | 0,054 |
| 4 | Ap1 max | 0,05 x D | 100 | – | 120 | Ap1 max | 0,2 x D | 50 | – | 60 | fz | 0,052 | 0,064 | 0,074 |
| H 1 | Ap1 max | 0,05 x D | 160 | – | 280 | Ap1 max | 0,2 x D | 80 | – | 140 | fz | 0,062 | 0,077 | 0,088 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters. For finishing, increase feed per tooth by 20%.
