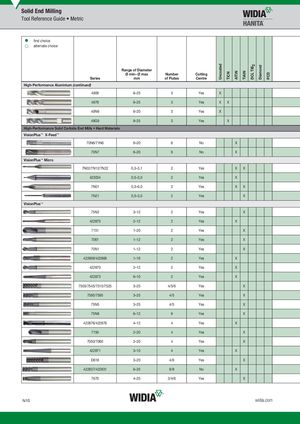

Общий каталог Widia 2017 - страница 1046
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
first choice alternate choice
Range of Diameter
| Ø min– Ø max | Number | Cutting | ||
| Series | mm | of Flutes | Centre |
High-Performance Aluminium (continued)
| 4909 | 6–25 | 3 | Yes | X | |
| 4979 | 6–25 | 3 | Yes | X | X |
| 49N9 | 6–20 | 3 | Yes | X | |
| 49G9 | 8–25 | 3 | Yes | X |
High-Performance Solid Carbide End Mills • Hard Materials VisionPlus™ X-Feed ™
| 70N6/71N6 | 6–20 | 6 | No | X | |
| 70N7 | 6–20 | 6 | No | X |
VisionPlus™ Micro
| 7N02/7N12/7N22 | 0,3–3,1 | 2 | Yes | X | X | |
| 423034 | 0,5–3,0 | 2 | Yes | X | ||
| 7N01 | 0,3–6,0 | 2 | Yes | X | X | |
| 7N21 | 0,5–3,0 | 2 | Yes | X |
VisionPlus™
| 75N2 | 3–12 | 2 | Yes | X | |
| 422875 | 2–12 | 2 | Yes | X | |
| 7151 | 1–20 | 2 | Yes | X | |
| 7061 | 1–12 | 2 | Yes | X | |
| 70N1 | 1–12 | 2 | Yes | X | |
| 422869/422868 | 1–16 | 2 | Yes | X | |
| 422870 | 2–12 | 2 | Yes | X | |
| 422873 | 6–10 | 2 | Yes | X | |
| 7505/7545/7515/7525 | 3–25 | 4/5/6 | Yes | X | |
| 7585/7595 | 3–25 | 4/5 | Yes | X | |
| 75N5 | 3–25 | 4/5 | Yes | X | |
| 75N8 | 6–12 | 6 | Yes | X | |
| 422876/422878 | 4–12 | 4 | Yes | X | |
| 7150 | 2–20 | 4 | Yes | X | |
| 7050/7060 | 2–20 | 4 | Yes | X | |
| 422871 | 3–10 | 4 | Yes | X | |
| D618 | 3–20 | 4/6 | Yes | X | |
| 422837/422831 | 6–25 | 6/8 | No | X | |
| 7670 | 4–25 | 3/4/6 | Yes | X |
