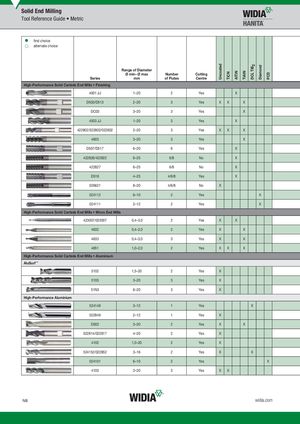

Общий каталог Widia 2017 - страница 1044
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
first choice alternate choice
Range of Diameter
| Ø min– Ø max | Number | Cutting | ||
| Series | mm | of Flutes | Centre |
High-Performance Solid Carbide End Mills • Finishing
| 4001 JJ | 1–20 | 2 | Yes | X | ||
| D503/D513 | 2–20 | 3 | Yes | X | X | X |
| DC03 | 3–20 | 3 | Yes | X | ||
| 4503 JJ | 1–20 | 3 | Yes | X | ||
| 422802/322802/022802 | 2–20 | 3 | Yes | X | X | X |
| 4603 | 3–20 | 3 | Yes | X | ||
| D507/D517 | 6–20 | 6 | Yes | X | ||
| 422826/422822 | 6–25 | 6/8 | No | X | ||
| 422827 | 6–25 | 6/8 | No | X | ||
| D518 | 4–25 | 4/6/8 | Yes | X | ||
| 026621 | 8–20 | 4/6/8 | No | X | ||
| 024112 | 6–10 | 2 | Yes | X | ||
| 024111 | 2–12 | 2 | Yes | X |
High-Performance Solid Carbide End Mills • Micro End Mills
| 423007/023007 | 0,4–3,0 | 2 | Yes | X | X | |||
| 4632 | 0,4–2,0 | 2 | Yes | X | X | |||
| 4633 | 0,4–3,0 | 3 | Yes | X | X | |||
| 4651 | 1,0–2,0 | 2 | Yes | X | X | X |
High-Performance Solid Carbide End Mills • Aluminium AluSurf™
| 5102 | 1,5–20 | 2 | Yes | X |
| 5103 | 3–20 | 3 | Yes | X |
| 51N3 | 6–20 | 3 | Yes | X |
High-Performance Aluminium
| 524149 | 3–12 | 1 | Yes | X | ||
| 022849 | 2–12 | 1 | Yes | X | ||
| D502 | 3–20 | 2 | Yes | X | X | |
| 022814/022817 | 4–20 | 2 | Yes | X | ||
| 4102 | 1,0–20 | 2 | Yes | X | ||
| 524152/022852 | 3–16 | 2 | Yes | X | X | |
| 024101 | 6–10 | 2 | Yes | X | ||
| 4103 | 3–20 | 3 | Yes | X | X |
