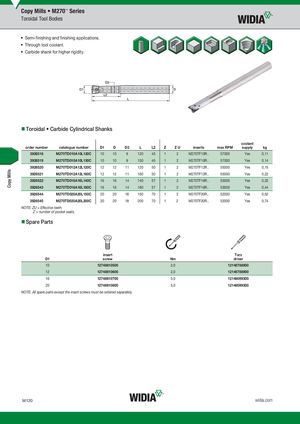

Общий каталог Widia 2017 - страница 1024
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Semi-finishing and finishing applications.
- Through tool coolant.
- Carbide shank for higher rigidity.
- Toroidal Carbide Cylindrical Shanks
coolant
| order number | catalogue number | D1 | D | D3 | L | L2 | Z | Z U | inserts max RPM | supply | kg | |
| 3926518 | M270TD010A10L120C | 10 | 10 | 9 | 120 | 45 | 1 | 2 | M270TF10R.. | 57000 | Yes | 0,11 |
| 3926519 | M270TD010A10L150C | 10 | 10 | 9 | 150 | 45 | 1 | 2 | M270TF10R.. | 57000 | Yes | 0,14 |
| 3926520 | M270TD012A12L120C | 12 | 12 | 11 | 120 | 50 | 1 | 2 | M270TF12R.. | 55000 | Yes | 0,15 |
| 3926521 | M270TD012A12L160C | 12 | 12 | 11 | 160 | 50 | 1 | 2 | M270TF12R.. | 55000 | Yes | 0,22 |
| 3926522 | M270TD016A16L140C | 16 | 16 | 14 | 140 | 57 | 1 | 2 | M270TF16R.. | 53000 | Yes | 0,32 |
| 3926543 | M270TD016A16L180C | 16 | 16 | 14 | 180 | 57 | 1 | 2 | M270TF16R.. | 53000 | Yes | 0,44 |
| 3926544 | M270TD020A20L150C | 20 | 20 | 18 | 150 | 70 | 1 | 2 | M270TF20R.. | 52000 | Yes | 0,52 |
| 3926545 | M270TD020A20L200C | 20 | 20 | 18 | 200 | 70 | 1 | 2 | M270TF20R.. | 52000 | Yes | 0,74 |
NOTE: ZU = Effective teeth. Z = number of pocket seats.
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 10 | 12748610500 | 2,0 | 12148788900 | ||
| 12 | 12748610600 | 2,0 | 12148788900 | ||
| 16 | 12748610700 | 5,0 | 12148099300 | ||
| 20 | 12748610800 | 5,0 | 12148099300 |
NOTE: All spare parts except the insert screws must be ordered separately.
