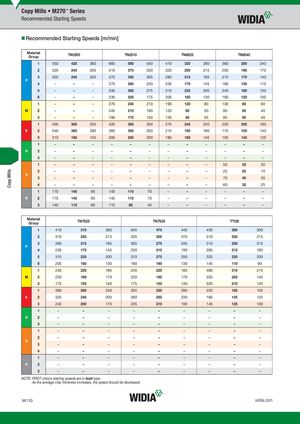

Recommended Starting Speeds [m/min]
| Material Group | TN2505 | TN2510 | TN6525 | TN6540 | ||||||
| 1 | 550 | 420 360 | 660 | 580 | 540 | 410 | 320 | 280 | 360 280 | 240 |
| 2 | 320 | 240 205 | 410 | 370 | 330 | 320 | 250 | 215 | 250 190 | 170 |
| 3 | 320 | 240 205 | 370 | 330 | 305 | 280 | 215 | 185 | 215 170 | 140 |
| P 4 | – | – – | 275 | 260 | 230 | 235 | 170 | 145 | 180 130 | 110 |
| 5 | – | – – | 330 | 300 | 275 | 310 | 235 | 200 | 240 180 | 150 |
| 6 | – | – – | 230 | 205 | 175 | 205 | 160 | 130 | 160 120 | 100 |
| 1 | – | – – | 270 | 240 | 210 | 190 | 120 | 80 | 130 80 | 60 |
| M 2 | – | – – | 245 | 210 | 190 | 120 | 80 | 50 | 80 50 | 40 |
| 3 | – | – – | 190 | 175 | 150 | 125 | 80 | 55 | 85 50 | 40 |
| 1 | 400 | 300 250 | 420 | 360 | 300 | 275 | 245 | 220 | 220 205 | 180 |
| K 2 | 540 | 365 280 | 360 | 300 | 250 | 215 | 190 | 180 | 175 155 | 140 |
| 3 | 310 | 190 155 | 300 | 250 | 200 | 180 | 160 | 145 | 155 145 | 125 |
| 1 | – | – – | – | – | – | – | – | – | – – | – |
| N 2 | – | – – | – | – | – | – | – | – | – – | – |
| 3 | – | – – | – | – | – | – | – | – | – – | – |
| 1 | – | – – | – | – | – | – | – | – | 50 35 | 30 |
| 2 | – | – – | – | – | – | – | – | – | 25 20 | 10 |
| S 3 | – | – – | – | – | – | – | – | – | 70 40 | 30 |
| 4 | – | – – | – | – | – | – | – | – | 60 30 | 25 |
| 1 | 175 | 140 95 | 145 | 110 | 70 | – | – | – | – – | – |
| H 2 | 175 | 140 95 | 145 | 110 | 70 | – | – | – | – – | – |
| 3 | 140 | 115 80 | 115 | 80 | 45 | – | – | – | – – | – |
| Material Group | TN7525 | TN75 | 35 | TTI25 | ||||||
| 1 | 410 | 310 | 280 | 545 | 475 | 445 | 430 | 360 | 300 | |
| 2 | 310 | 250 | 215 | 335 | 305 | 275 | 310 | 250 | 215 | |
| P 3 | 280 | 215 | 185 | 305 | 275 | 245 | 310 | 250 | 215 | |
| 4 | 235 | 170 | 145 | 230 | 210 | 190 | 265 | 215 | 180 | |
| 5 | 310 | 235 | 200 | 310 | 275 | 250 | 320 | 235 | 200 | |
| 6 | 205 | 160 | 130 | 190 | 160 | 130 | 145 | 110 | 90 | |
| 1 | 245 | 220 | 185 | 245 | 220 | 185 | 480 | 310 | 215 | |
| M 2 | 220 | 190 | 170 | 220 | 190 | 170 | 325 | 205 | 145 | |
| 3 | 175 | 155 | 140 | 175 | 155 | 140 | 320 | 210 | 145 | |
| 1 | 380 | 280 | 240 | 355 | 320 | 290 | 220 | 185 | 155 | |
| K 2 | 325 | 240 | 200 | 280 | 250 | 230 | 180 | 145 | 125 | |
| 3 | 240 | 200 | 170 | 235 | 210 | 190 | 145 | 125 | 100 | |
| 1 | – | – | – | – | – | – | – | – | – | |
| N 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | |
| 2 | – | – | – | – | – | – | – | – | – | |
| S 3 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | |
| H 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – |
