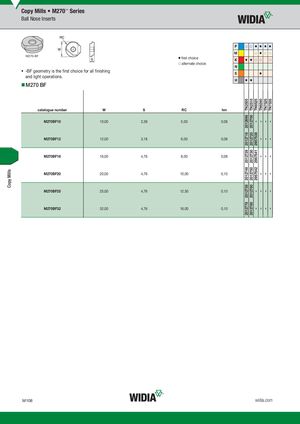

Ball Nose Inserts
| BF catalogue number ometry is the first choice f i ht operations. F | W i or all finishing | S | RC �first choice �alternate choice | hm P M K N S H | TN2505 TN2510 TN6525 TN6540 TN7525 TN7535 � � � � � � � � � � � � � � � � � � |
| M270BF10 M270BF12 | 10,00 12,00 | 2,38 3,18 | 5,00 6,00 | 0,08 0,08 | 2012698 2012700 – – – – 2012718 2012720 2957538 – – – |
| M270BF16 | 16,00 | 4,76 | 8,00 | 0,08 | 2012728 2012730 2957541 – – – |
| M270BF20 | 20,00 | 4,76 | 10,00 | 0,10 | 2012748 2012750 2957542 – – – |
| M270BF25 M270BF32 | 25,00 32,00 | 4,76 4,76 | 12,50 16,00 | 0,10 0,10 | 2012758 2012760 – – – – 2012778 2012780 – – – – |
